Aluminum PCB
YC PCB supplies custom aluminum PCB, aluminum circuit board and aluminum substrate board for LED lighting, power electronics and heat-sensitive assemblies. Orders can include bare boards or complete PCBA with component sourcing, SMT/THT assembly and testing.
What Is Aluminum PCB?
An aluminum PCB combines a copper circuit layer, thermally conductive dielectric and aluminum base to transfer heat away from LEDs or power components. It is a practical choice when your product needs better heat dissipation than FR4 while controlling board weight and cost.
Your production specification should define copper thickness, dielectric thermal conductivity, insulation strength, aluminum base thickness and surface finish.
Aluminum PCB Details to Confirm
Available aluminum PCB configurations include round, linear and custom outlines with different LED pad layouts, thermal materials and surface finishes. Select the configuration that matches your fixture, heat sink and assembly process.

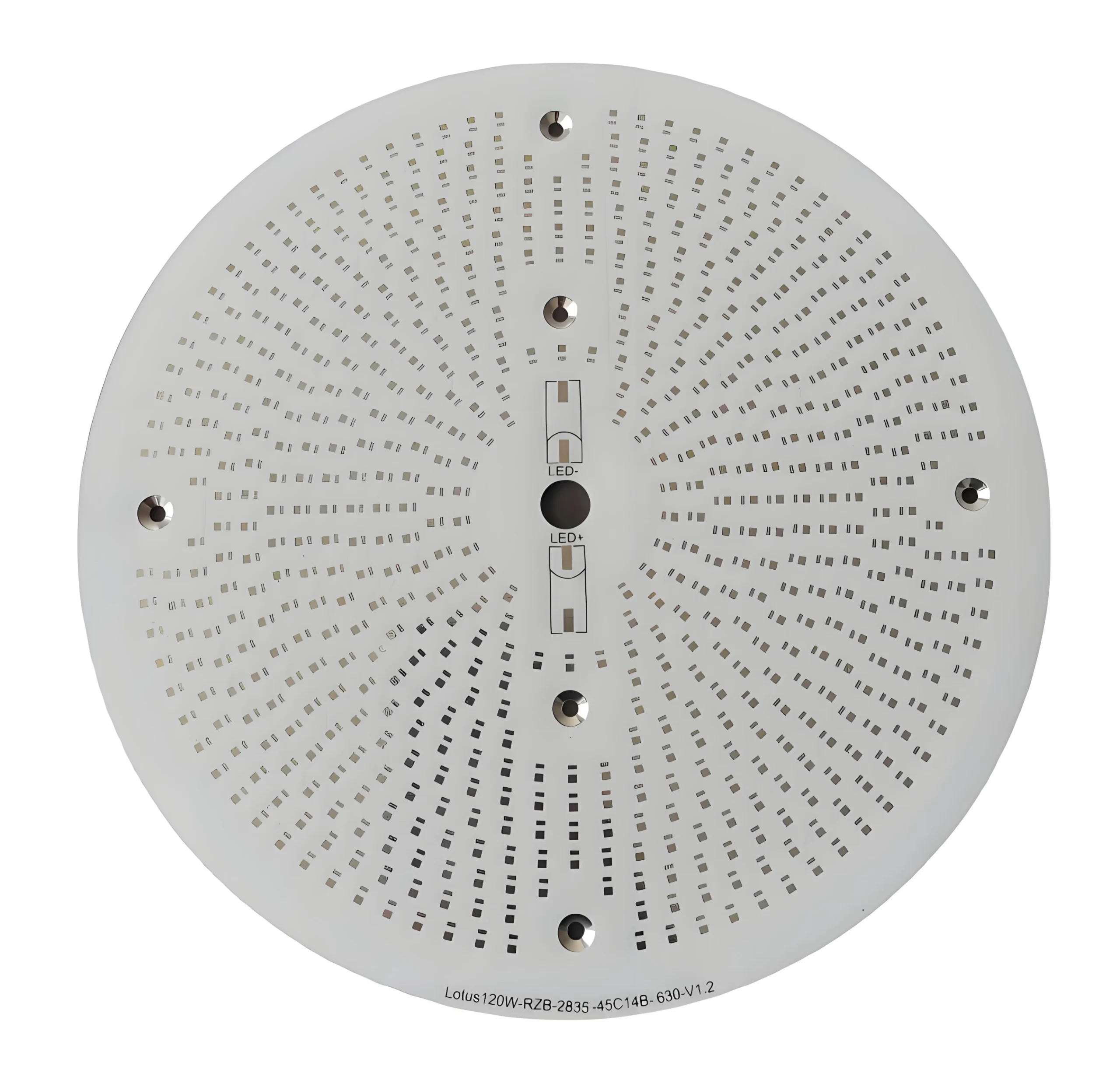

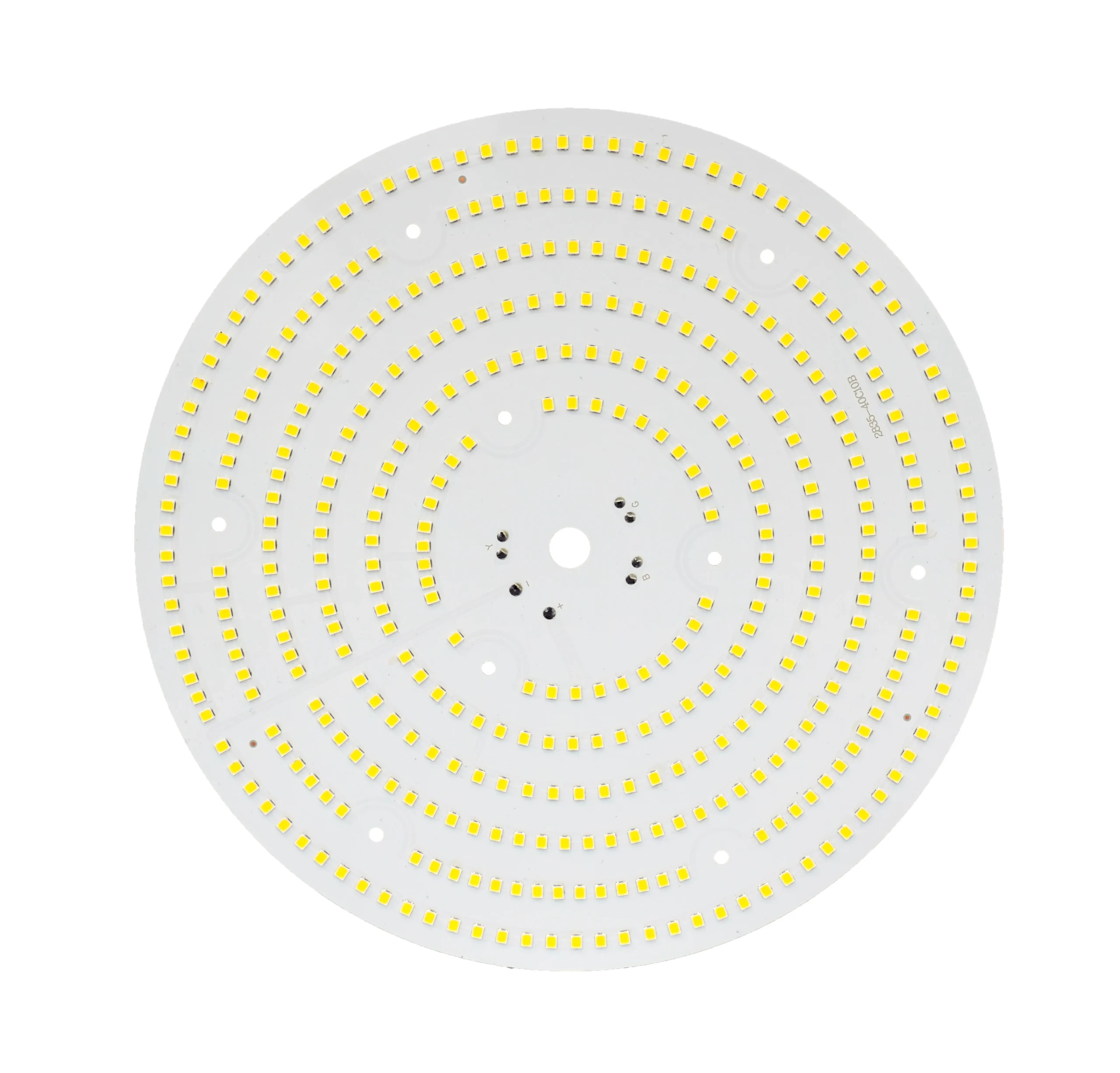

Round boards are available for UFO high bay lights, ceiling fixtures and circular LED modules, with mounting holes and LED spacing produced to your drawing.

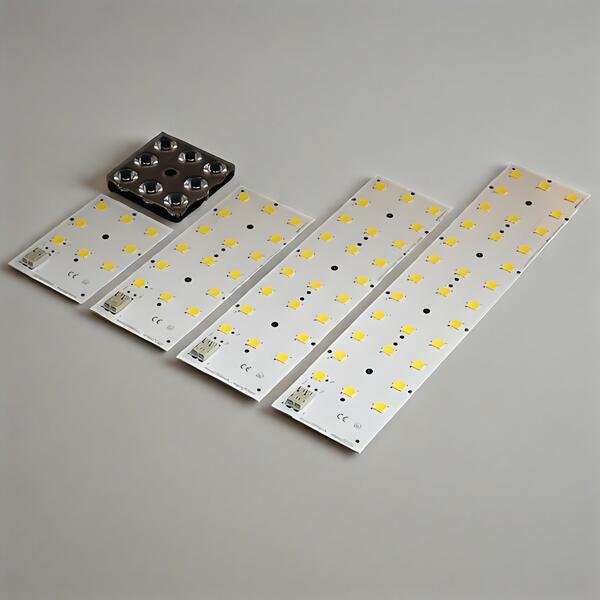

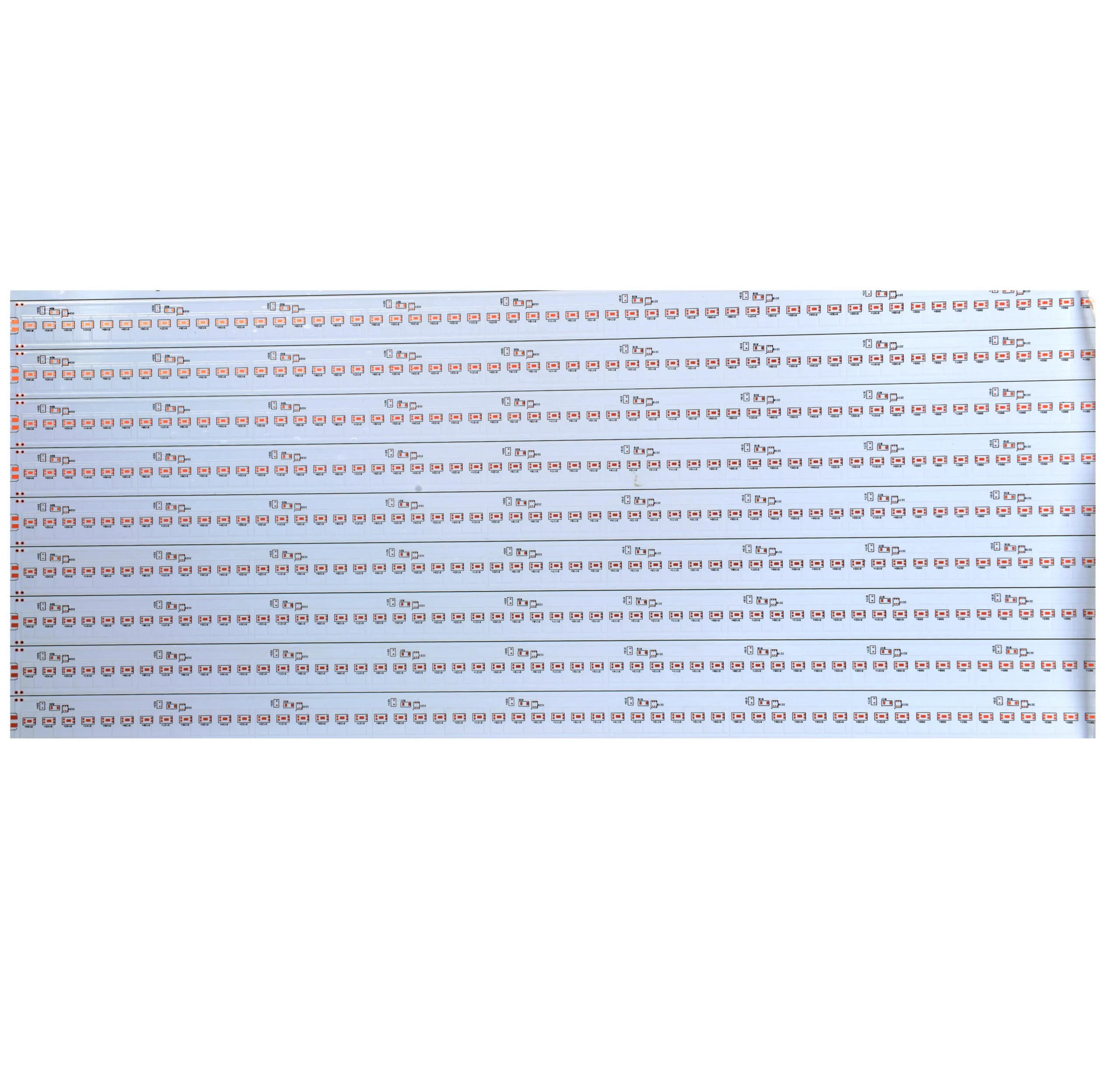

Linear boards are supplied for tube lights, light bars, cabinet lights and other long LED modules, with custom length, width and panelization.

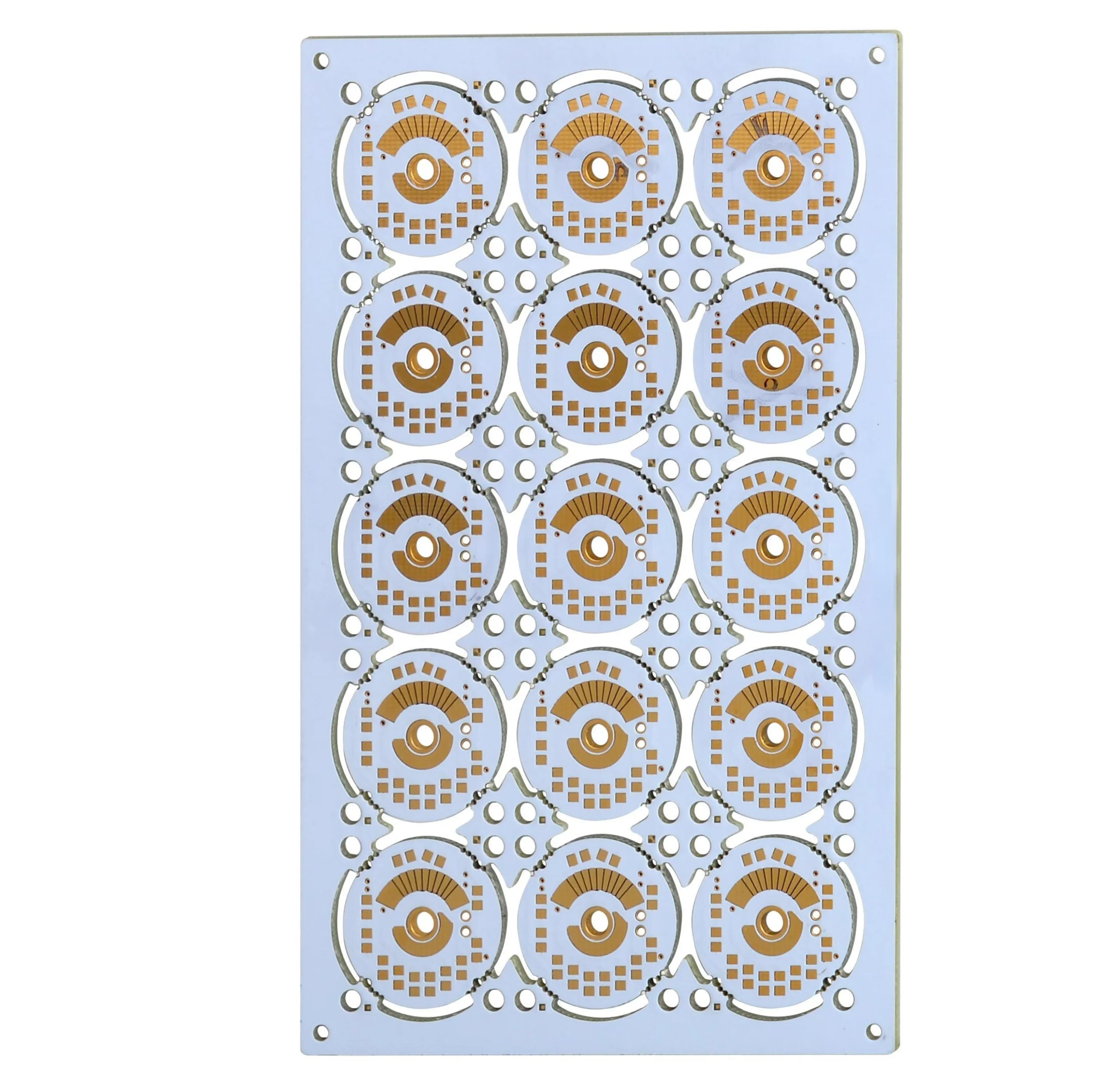

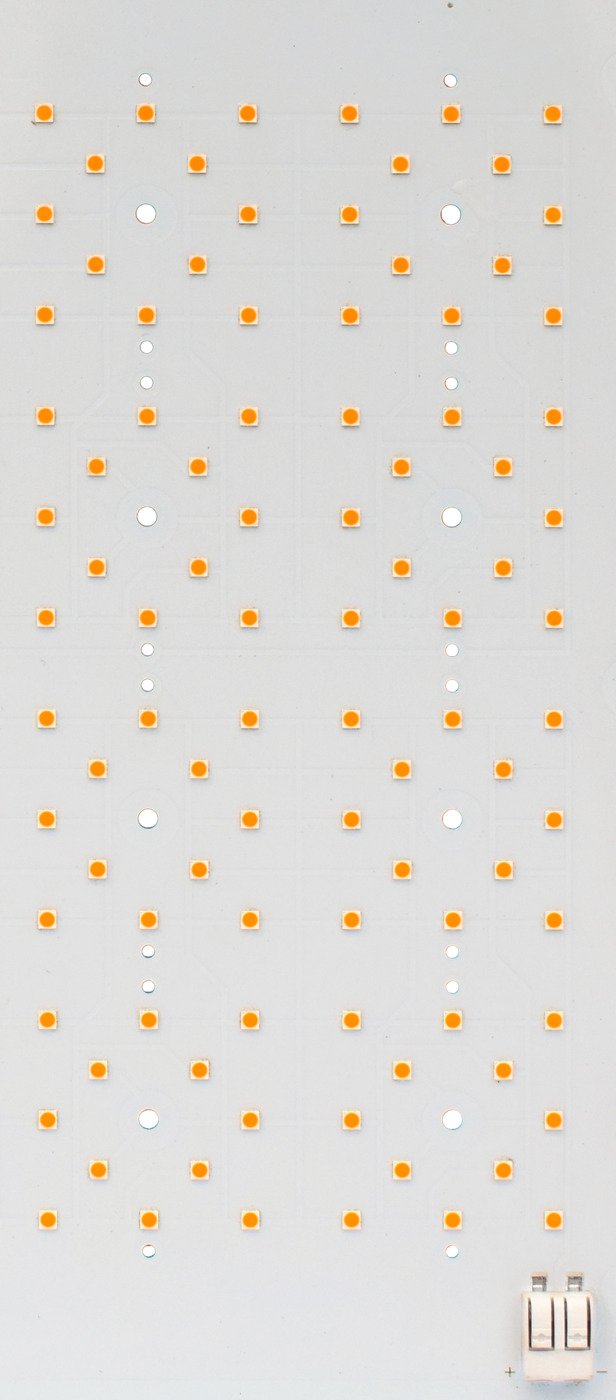

LED pad size, current path, copper area and solder mask openings are manufactured to the approved Gerber and assembly files.
OSP, lead-free HASL, ENIG and silver plating are available according to solderability, storage and assembly requirements.
Choose the Right Aluminum PCB
Choose the aluminum base PCB route according to LED power, required thermal conductivity, board shape, assembly method and order quantity.

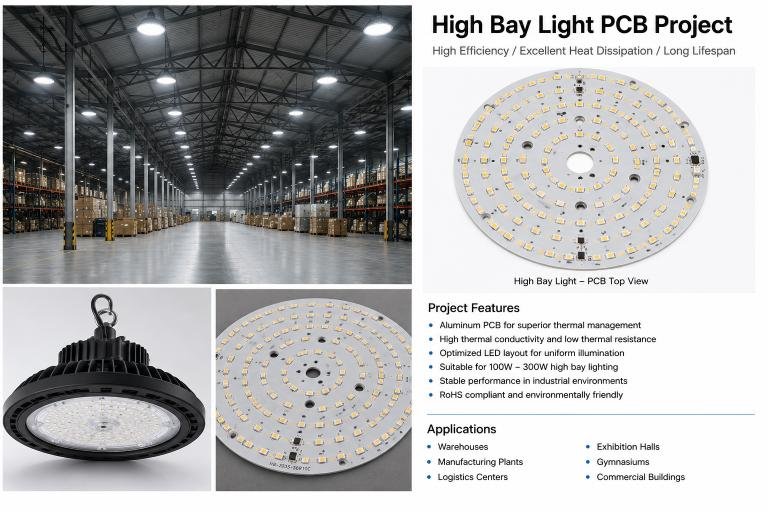

High Bay Light Series Aluminum PCB
For round high bay LED modules and industrial lighting boards requiring controlled LED spacing, reflective solder mask, accurate mounting holes and reliable heat transfer.
High Thermal Conductivity Aluminum Substrate Board
For high-power LED, driver and thermal board projects that need improved heat transfer while retaining the cost and weight advantages of an aluminum base.

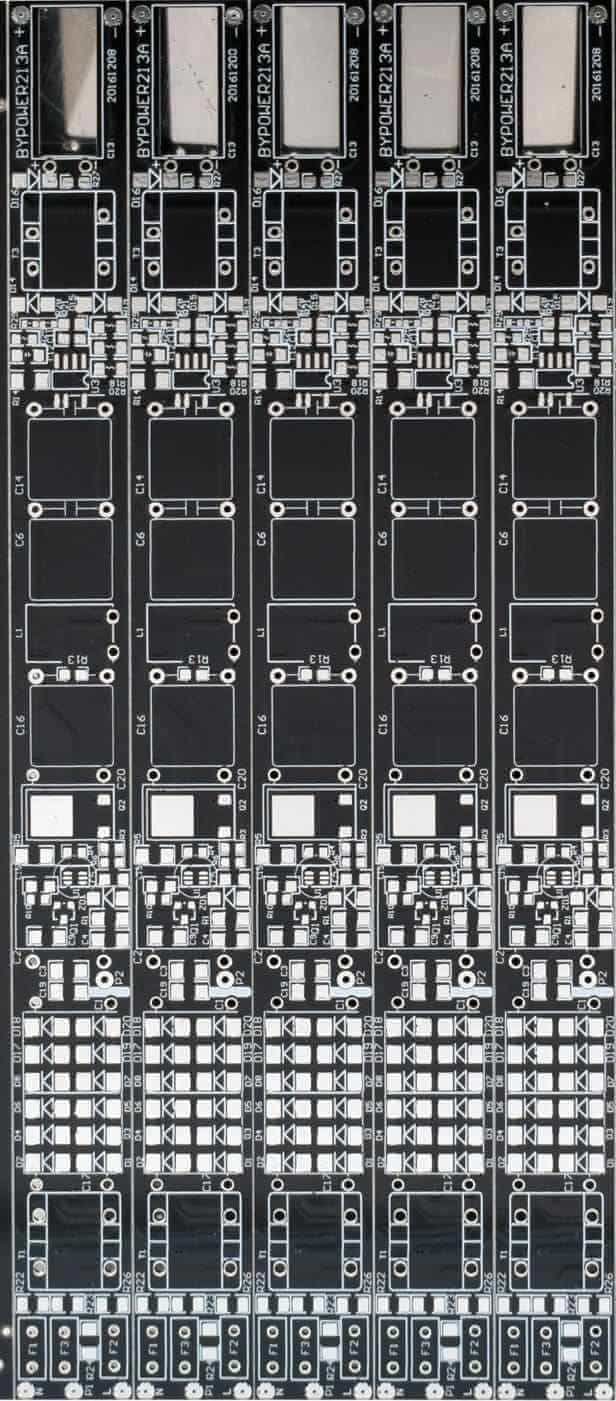

Superconducting Thermal Aluminum Substrate Board 8W
For demanding LED or power projects specified with an 8W/m·K thermal route, controlled dielectric thickness, insulation performance and custom LED pad layout.
Compare with Copper Substrate
For higher heat density, copper substrate and thermoelectric separation copper boards are also available as alternative material routes.

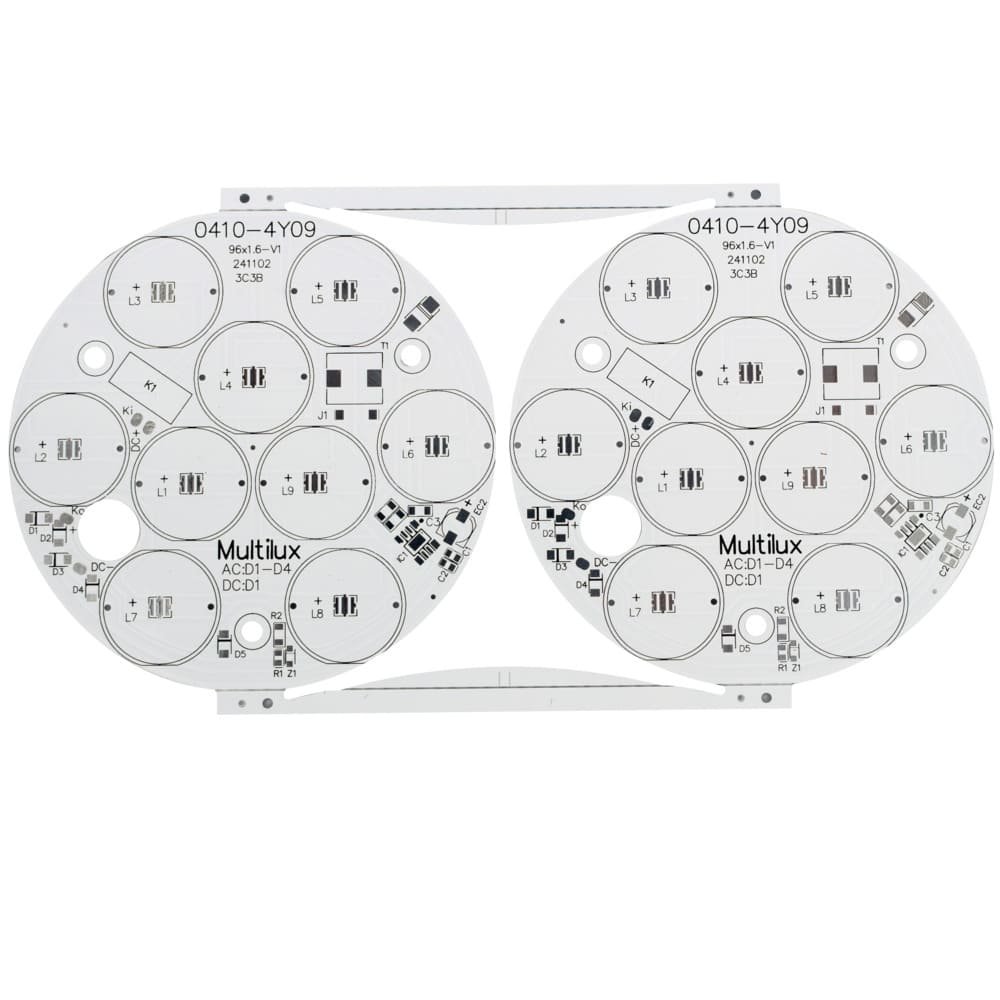

Match Thermal Needs to the Right Board
Select the board material by considering heat load, current, LED density, dielectric thickness and assembly method. The most suitable route balances thermal performance, manufacturing cost and production stability.
Provide LED power, expected heat load, board size, copper distribution and heat sink interface so the quotation can match a standard aluminum, high-thermal aluminum or copper substrate route.
- Common LED modules and lighting boards
- Balanced cost and heat transfer
- Useful for prototype and volume orders
- High-power LEDs or dense layouts
- Better dielectric thermal path
- Specify the required thermal conductivity in the RFQ
- Demanding LED and power modules
- Higher thermal target or thermal separation needs
- Compare thermal performance, cost, weight and machining requirements
Aluminum PCB Thermal Structure
The copper circuit, dielectric layer and aluminum base work together to control heat transfer and electrical insulation. Production follows the approved stack-up and mechanical drawing.
Heat travels from the LED pad through the copper layer and dielectric into the aluminum base and product heat sink.
Specify thermal conductivity, dielectric thickness and insulation strength according to the operating voltage and temperature target.
Pad shape, trace width, current path, solder mask opening and LED polarity are controlled according to the approved design.
Aluminum PCB Specifications
Final specifications are based on your Gerber files, mechanical drawing, material requirement and assembly plan. The table lists the information needed for manufacturing and quotation.
| Parameter | Standard Review Scope | Confirm by File |
|---|---|---|
| Board Type | Aluminum PCB, aluminum circuit board, aluminum substrate board, aluminum base PCB | Single-sided, double-sided or special route according to design |
| Base Material | Aluminum material selected according to the application | 1060 / 5052 / project-specific aluminum requirement |
| Thermal Conductivity | Standard, high-thermal and 8W/m·K material options | Target W/m·K, dielectric thickness and heat risk |
| Copper Weight | Copper weight selected for the specified current and layout | Current load, trace width and copper area |
| Surface Finish | HASL-LF, OSP, ENIG and silver plating options | Assembly method, storage time and solderability requirement |
| Solder Mask | White reflective solder mask and custom color options | LED brightness, optical reflection and visual requirement |
| Testing | AOI, electrical test and PCBA test route if required | Test points, functional test plan, packing and report needs |
Aluminum PCB Applications
Aluminum circuit boards are used in products that require efficient heat transfer, mechanical stability and reliable operation of LEDs or power components.

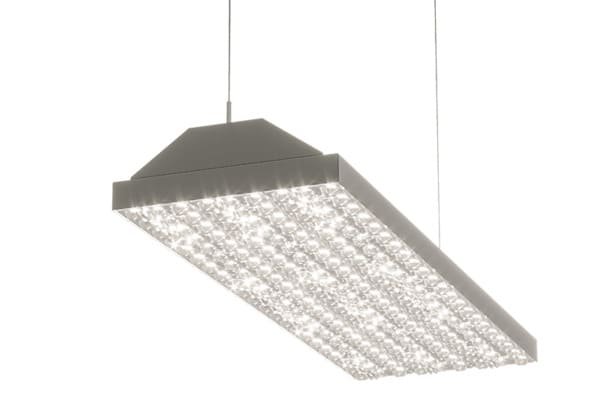

High bay lights, street lights, flood lights, panel lights and downlights.
Aluminum pcb, 2W Thermal conductivity LED lighting.

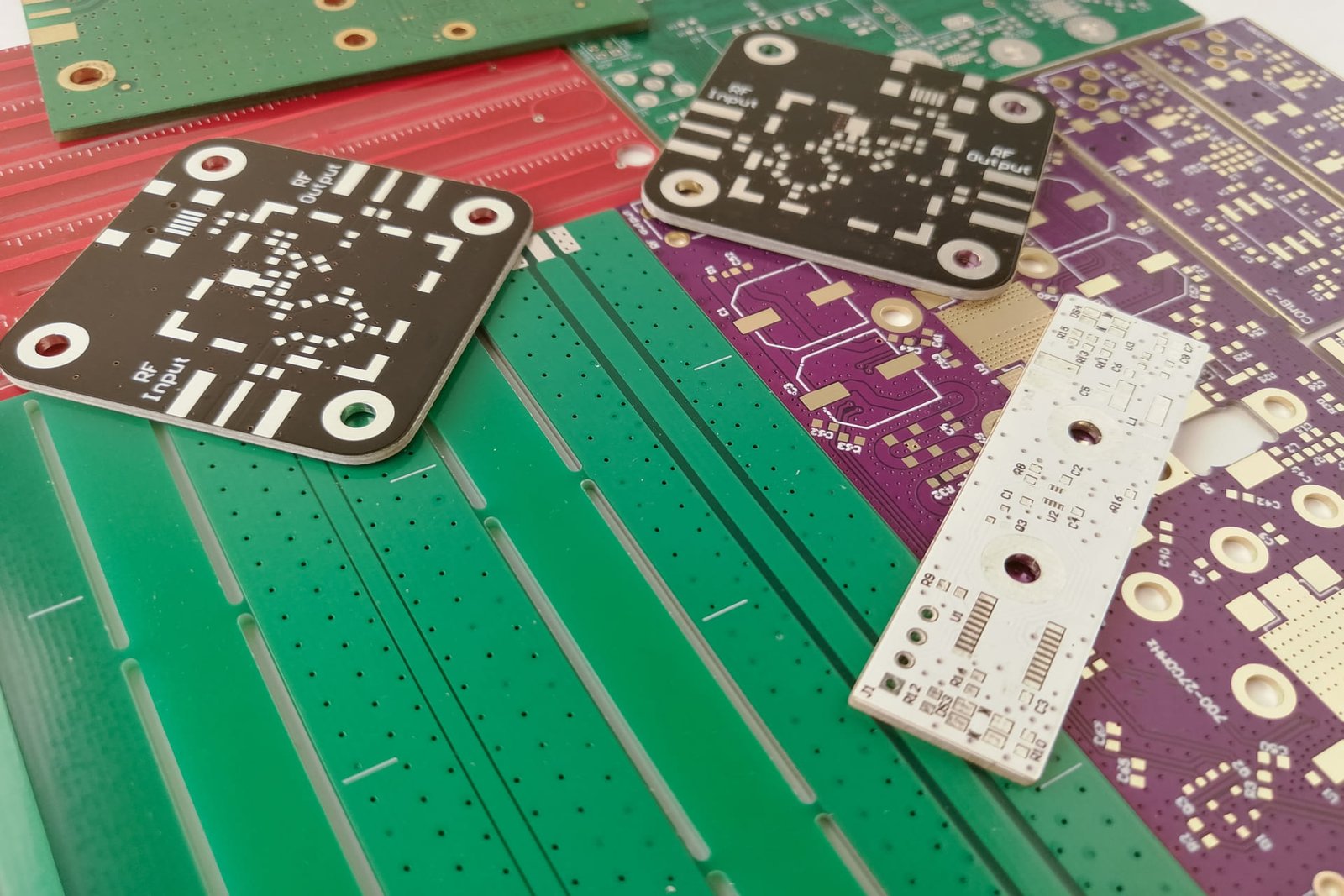

Control modules that need stable heat management and reliable assembly.

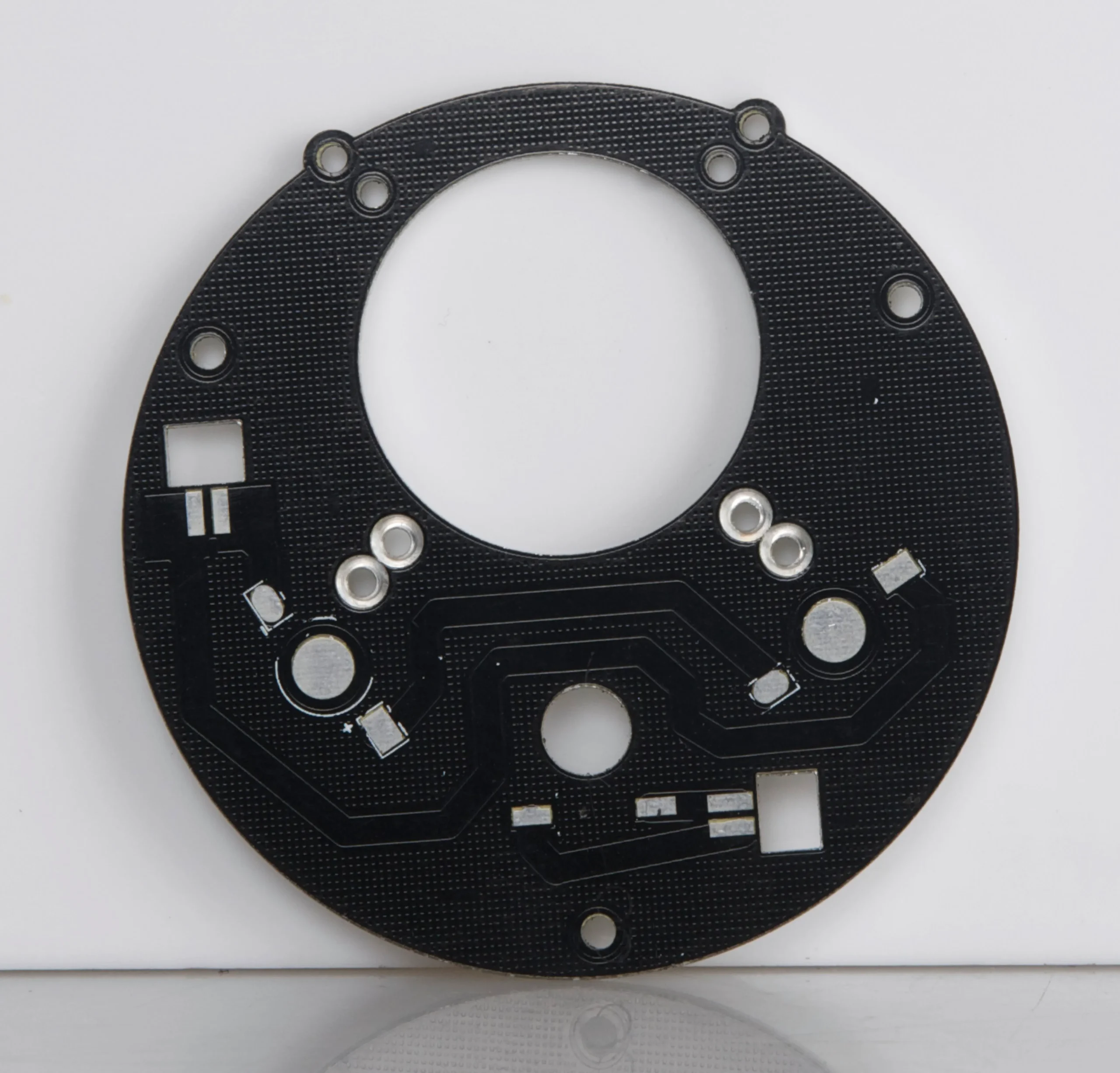

Vehicle lighting and electronic modules requiring controlled heat dissipation, secure mounting and vibration-resistant assembly.

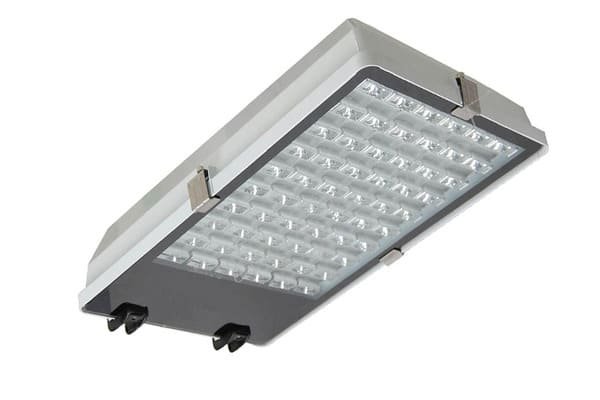

Street lights, landscape lighting and industrial outdoor fixtures.
Power conversion designs requiring suitable copper area, current capacity and operating-temperature control.

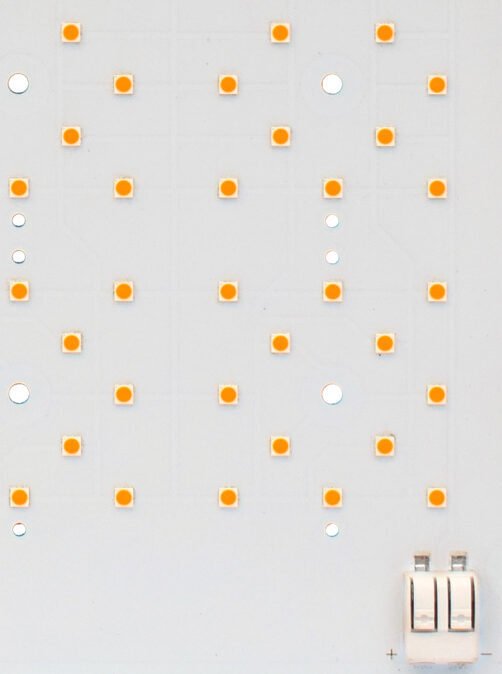

Assembled boards supplied with LEDs, connectors, polarity control and agreed functional testing.

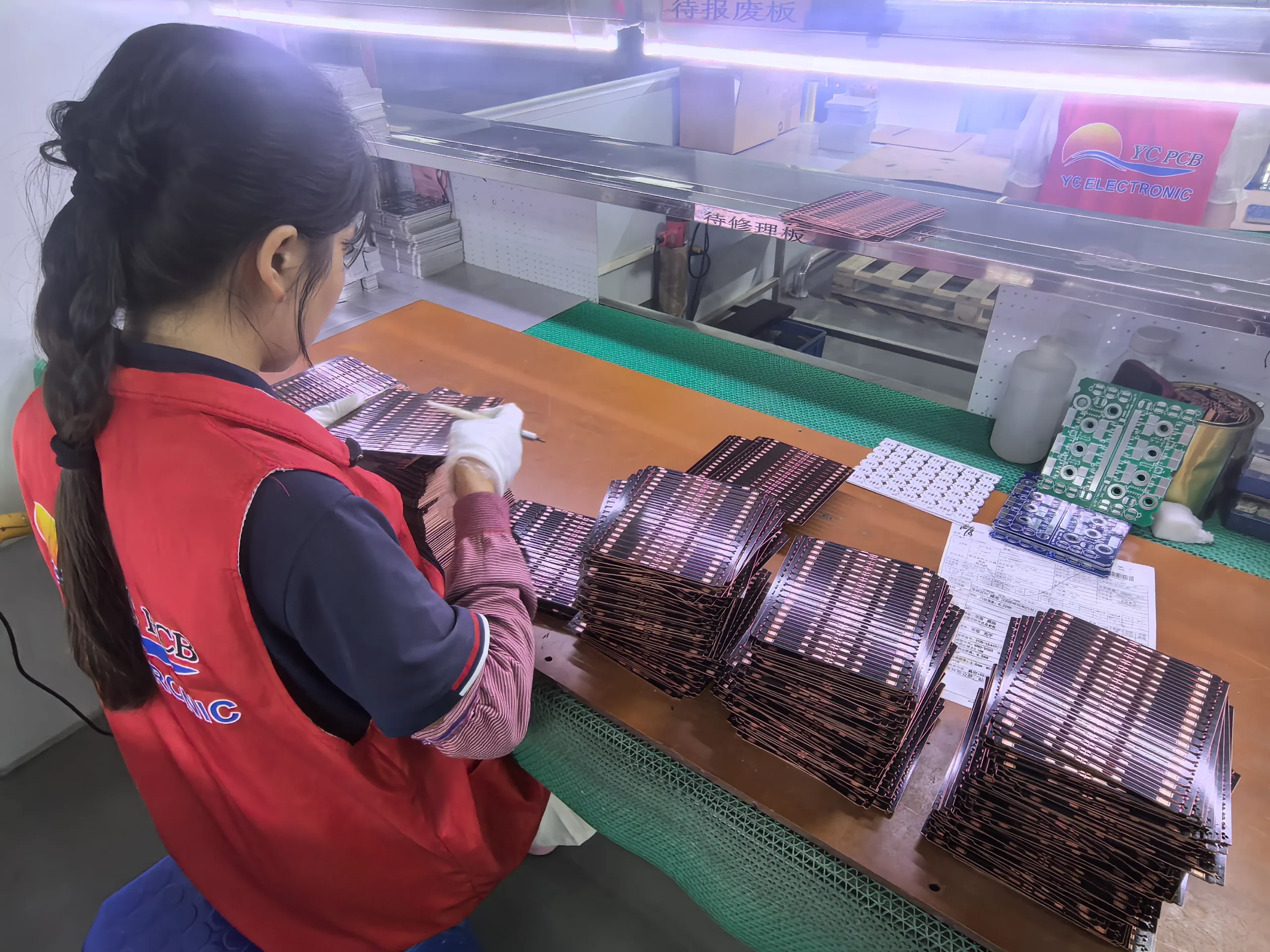

Functional testing, lighting checks and protective packing can be included before shipment.
Aluminum PCB Manufacturing Steps
Production includes material preparation, imaging, etching, solder mask, CNC forming, AOI and electrical testing according to the approved manufacturing files.

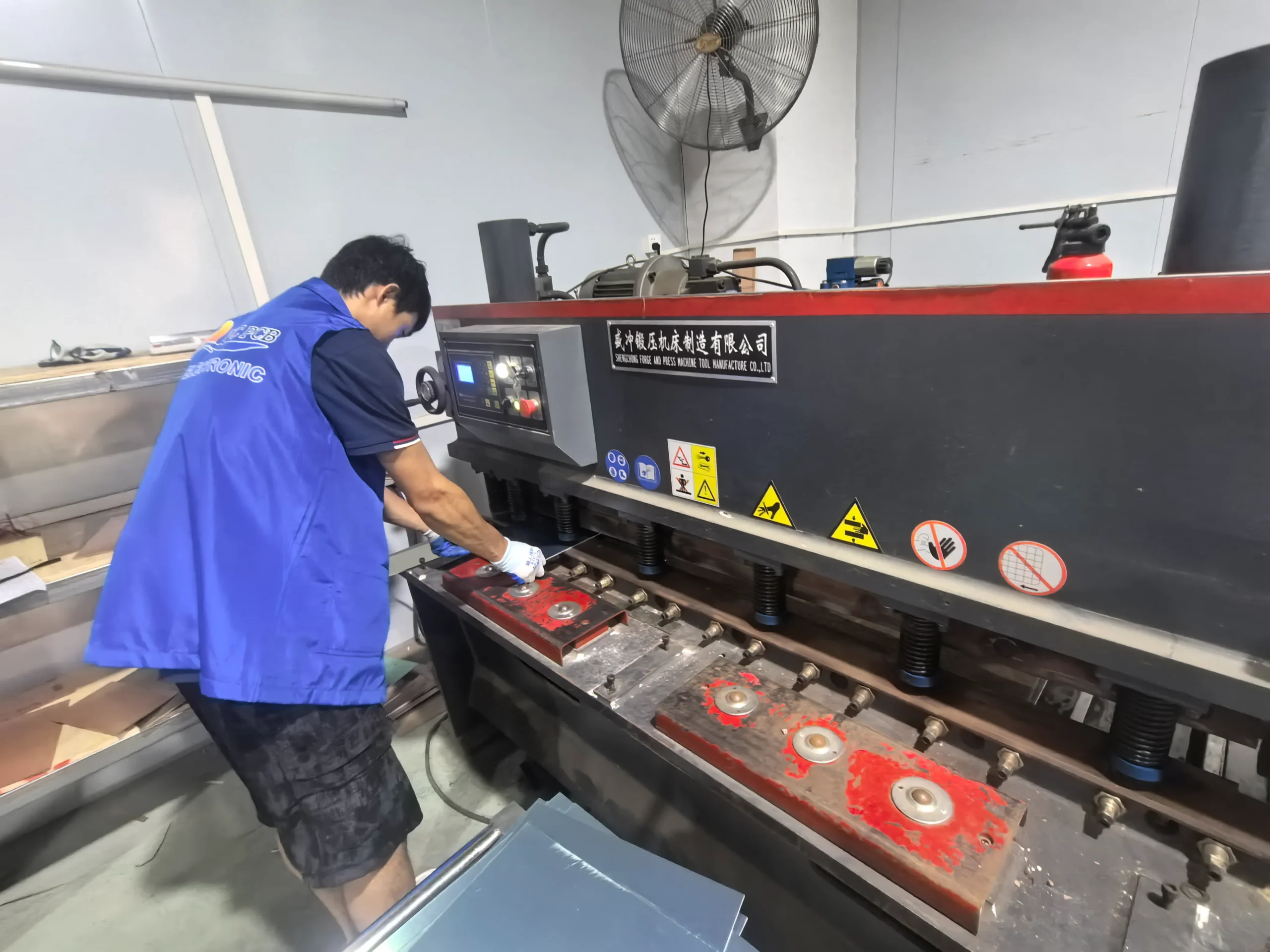

Aluminum material is cut and prepared according to the approved panel and board dimensions.

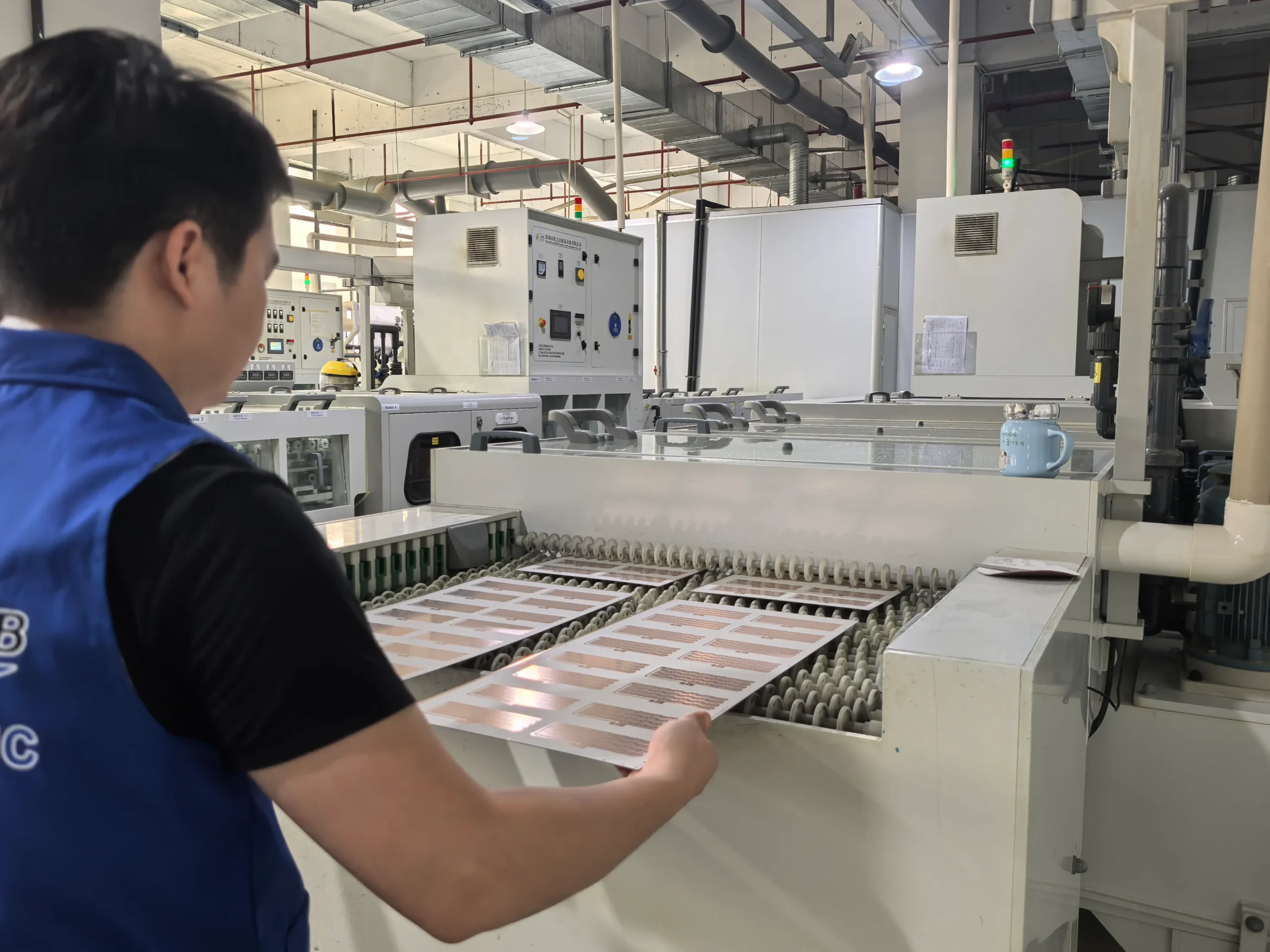

The aluminum and copper surfaces are cleaned and prepared to support insulation, solder mask adhesion and consistent appearance.
The circuit pattern is transferred from the approved Gerber data before etching.
Etching controls trace width, spacing and copper areas within the agreed production tolerance.

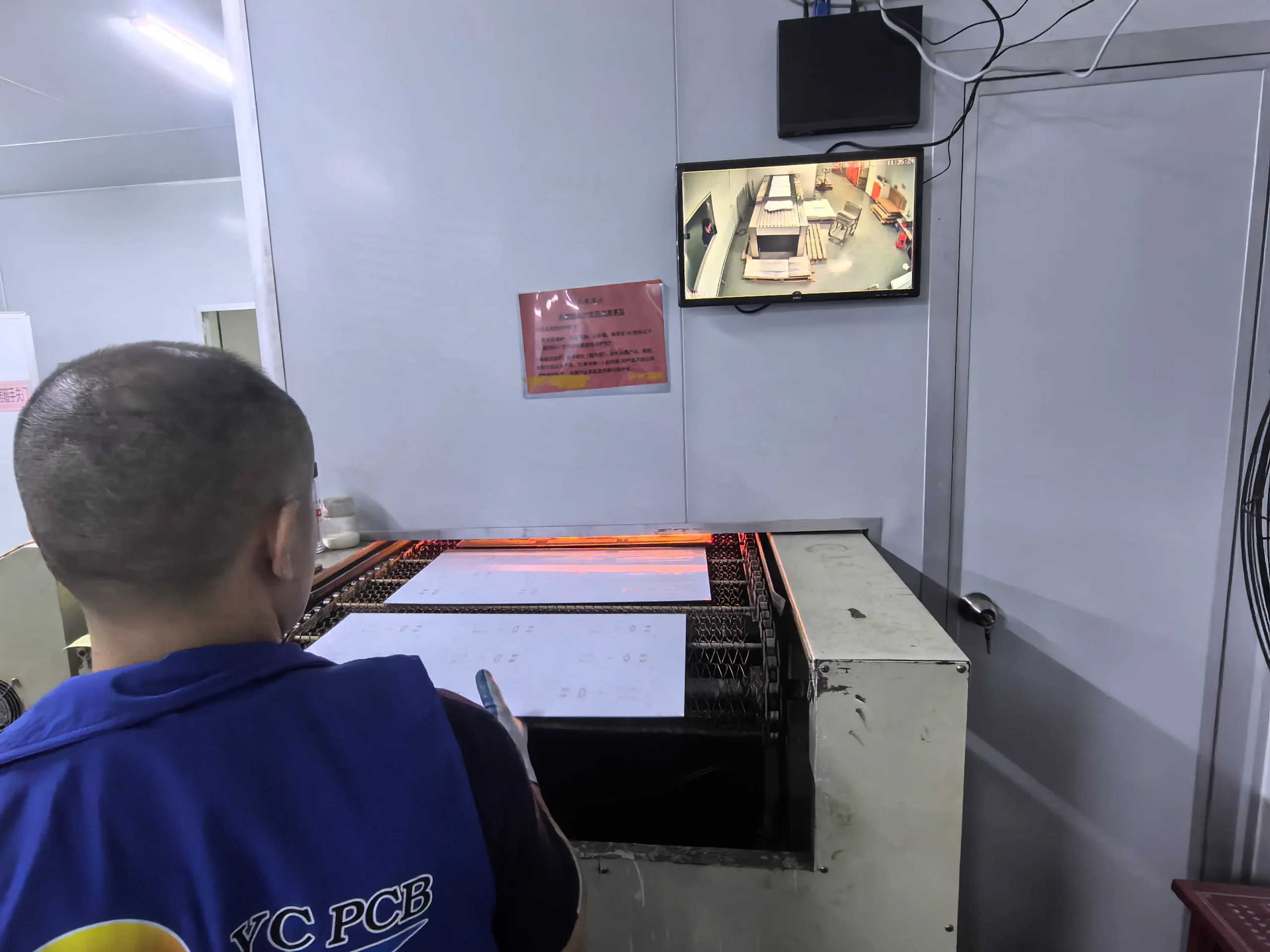

White reflective solder mask is available for LED products requiring higher light reflection and clean optical appearance.
Round, rectangular, slotted and custom outlines are produced by CNC routing, V-Cut or tooling according to the drawing.
Checks circuit pattern defects, missing pads, opens and shorts.
Reduces open and short circuit risks before shipment.
Quality Control Evidence
Quality control covers circuit pattern, solder mask registration, aluminum base condition, insulation, electrical continuity, assembly requirements and shipment packing.
AOI Inspection
Checks open trace, short circuit, over-etching, under-etching, missing pads and visible pattern defects.
Electrical Testing
Confirms electrical continuity before shipment and reduces open / short risk for production release.
PCBA Test Route
ICT, FCT, LED lighting tests, polarity checks and dedicated fixtures can be included according to the agreed PCBA test plan.
AOI records support verification of circuit patterns, pads and visible manufacturing defects before release.
Order-specific inspection records, packing photos and other agreed quality documents can be supplied.

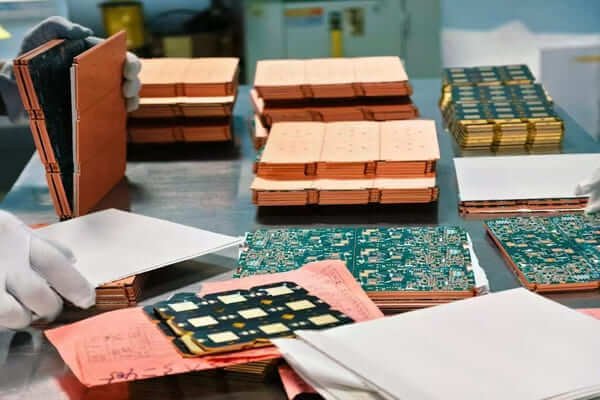

Quantity, labels, protective packing and shipping method are checked against the order before dispatch.
Bare-board fabrication and PCBA can be managed together to reduce mismatches between PCB design, component placement and the finished assembly.
Aluminum PCB Assembly Support
For LED aluminum PCB or power modules, provide the BOM, LED type, connector details, polarity, soldering requirements, fixture information, functional test method and packing instructions.
SMT / THT Review
SMT and THT assembly can include LEDs, heat-sensitive components, connectors and mixed-process assembly in the required sequence.
Testing Plan
Lighting tests, electrical tests, fixtures and shipment inspection records are arranged according to the approved test plan.
From Sample Review to Batch Production
YC PCB supports prototypes, pilot runs and repeat production. Each order can follow approved files, agreed testing, protective packing and selected logistics.
Gerber data, drill files, mechanical drawings, material requirements, thermal targets and BOM details are used to prepare the quotation.
Prototype, small-batch and volume production options are available according to quantity, process and required delivery date.
Final quantity, labels, export packing and shipping details are verified before shipment, with tracking supplied after dispatch.

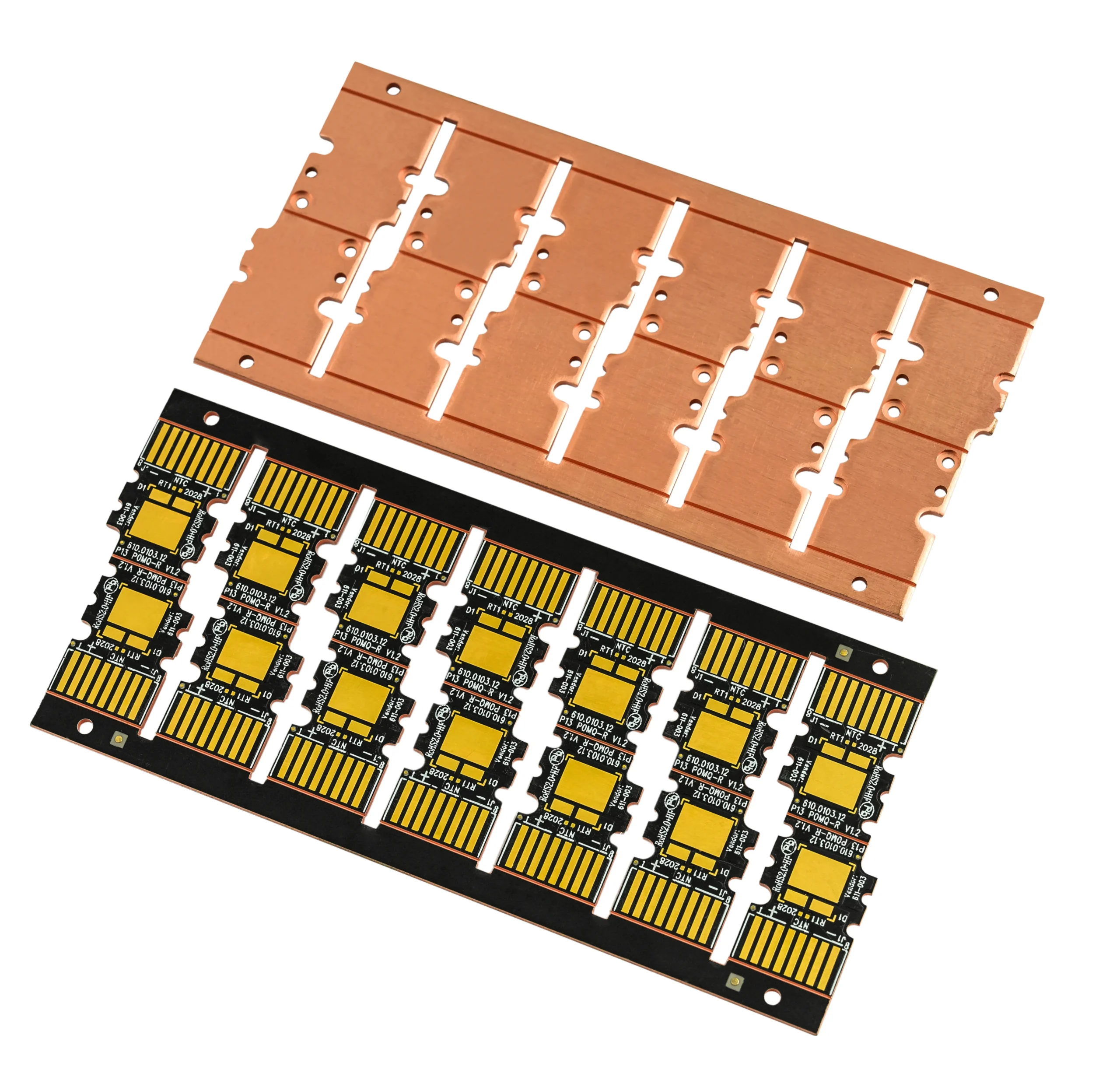

Aluminum PCB vs Other Board Routes
Choose FR4, standard aluminum, high-thermal aluminum or copper substrate according to heat load, routing needs, weight, cost and assembly requirements.
| Route | Best For | Buyer Should Check |
|---|---|---|
| FR4 PCB | Control circuits, low thermal load and dense routing needs | Whether heat is low enough for FR4 material |
| Aluminum PCB | LED aluminum PCB, lighting boards and thermal aluminum board projects | Thermal dielectric, board thickness and LED heat path |
| High Thermal Aluminum PCB | High-power LED, high bay light and power module applications | Thermal conductivity target, current load and cost balance |
| Copper Substrate PCB | Higher thermal performance or thermoelectric separation projects | Cost, weight, machining difficulty and assembly route |

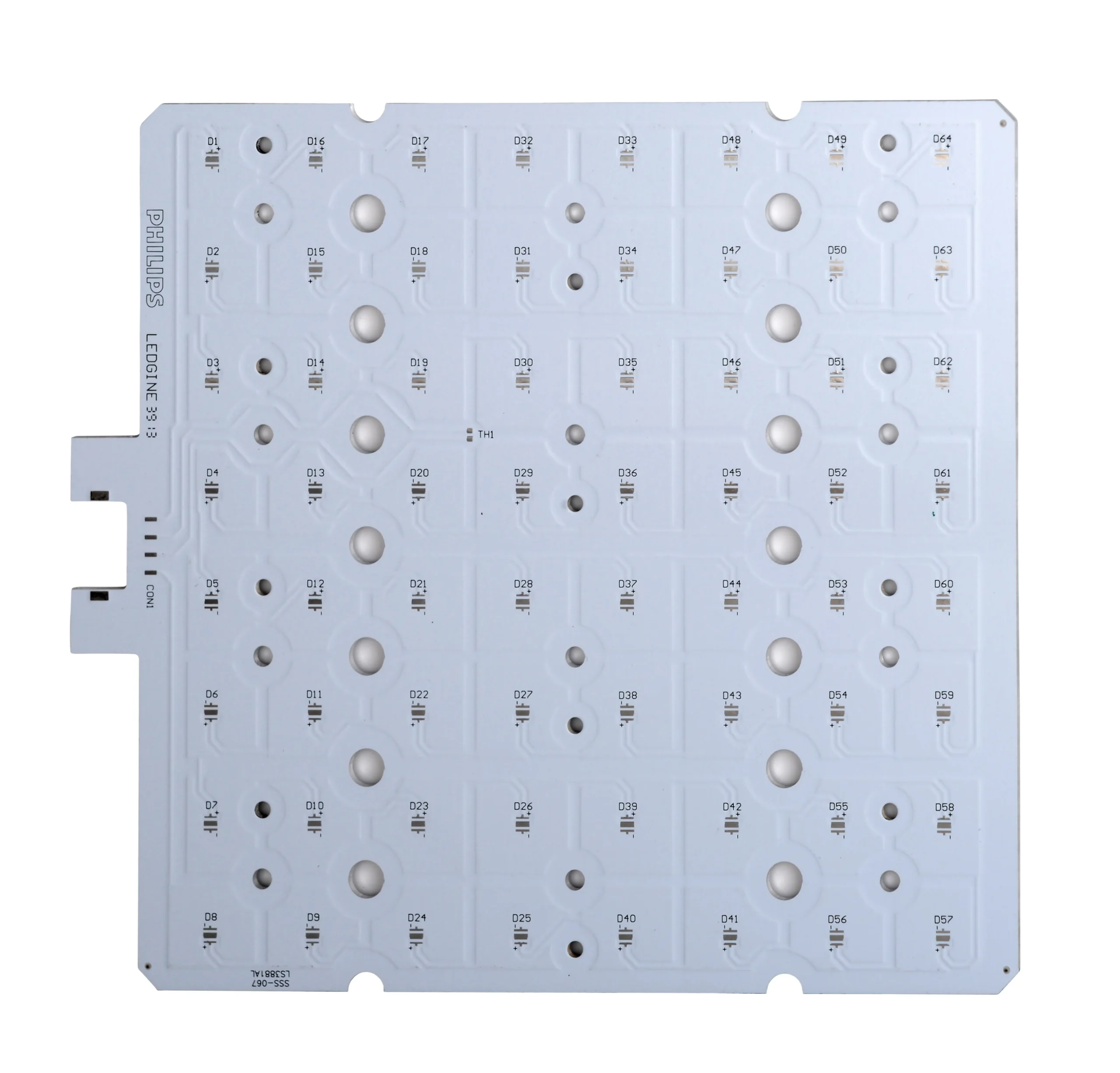

Send Your Aluminum PCB Files
For quotation, provide Gerber files, drill data, board drawing, material requirement, thermal conductivity target, copper weight, solder mask color, surface finish, quantity and PCBA files when assembly is required.
The quotation will cover the selected material, thermal route, surface finish, testing and assembly requirements shown in your files.
Aluminum PCB FAQ
Answers to common purchasing questions about aluminum PCB materials, thermal performance, finishes, assembly, order quantities and quotation files.
What is an aluminum PCB?
An aluminum PCB is a metal core circuit board that uses an aluminum base to transfer heat away from LEDs or power components through a thermal dielectric layer.
Is aluminum PCB better than FR4 PCB?
Aluminum PCB is usually better for heat dissipation, while FR4 is often better for general routing density and lower thermal load. The right route depends on power, heat, cost and assembly needs.
Can YC PCB manufacture LED aluminum PCB?
Yes. YC PCB manufactures LED aluminum PCBs with reflective solder mask, selected surface finish and custom LED layouts, and can also supply assembled boards with connectors and agreed testing.
What files are needed for an aluminum PCB quote?
Please send Gerber RS-274X, Excellon drill file, board outline, material requirement, copper weight, thermal conductivity target, quantity and BOM if assembly is needed.
Which surface finish should I choose?
HASL-LF, OSP, ENIG and silver plating are available. Select the finish according to solderability, storage time, assembly process and application.
Can aluminum substrate board be assembled with LEDs?
Yes. For LED PCBA, provide the BOM, pick-and-place file, LED polarity, test requirements, lens or connector clearance and packing instructions.
When should I choose high thermal aluminum PCB?
Choose high thermal aluminum PCB when standard aluminum PCB may not remove enough heat for high-power LEDs, dense LED layouts or power modules.
Can I order prototypes or small batches?
YC PCB supports prototypes, small batches and volume production. Lead time is confirmed after the files, materials, quantity and assembly scope are defined.
Send Your Aluminum PCB Requirements
Tell us what you need. For Gerber files, drill files, mechanical drawings, BOM, LED data or other attachments, email them directly to sales@ycelectronic.com after submitting this form.
