Single Sided FR4 PCB Standard Specs. Gerber-Based Quote.
YC PCB manufactures custom single sided FR4 PCB from customer Gerber files. Supported options include green, white, black, blue, and red solder mask; HASL, lead-free HASL, OSP, and ENIG surface finishes; individual board delivery or custom panelization.
Single Sided FR4 PCB Product Options
Select by material, solder mask, surface finish, delivery form, and application. Each item can be quoted from Gerber files, drawings, or reference samples.
Standard Single Sided FR4 PCB
General single-layer FR4 PCB for control boards, instruments, relay modules, small electronics, and cost-controlled industrial products.

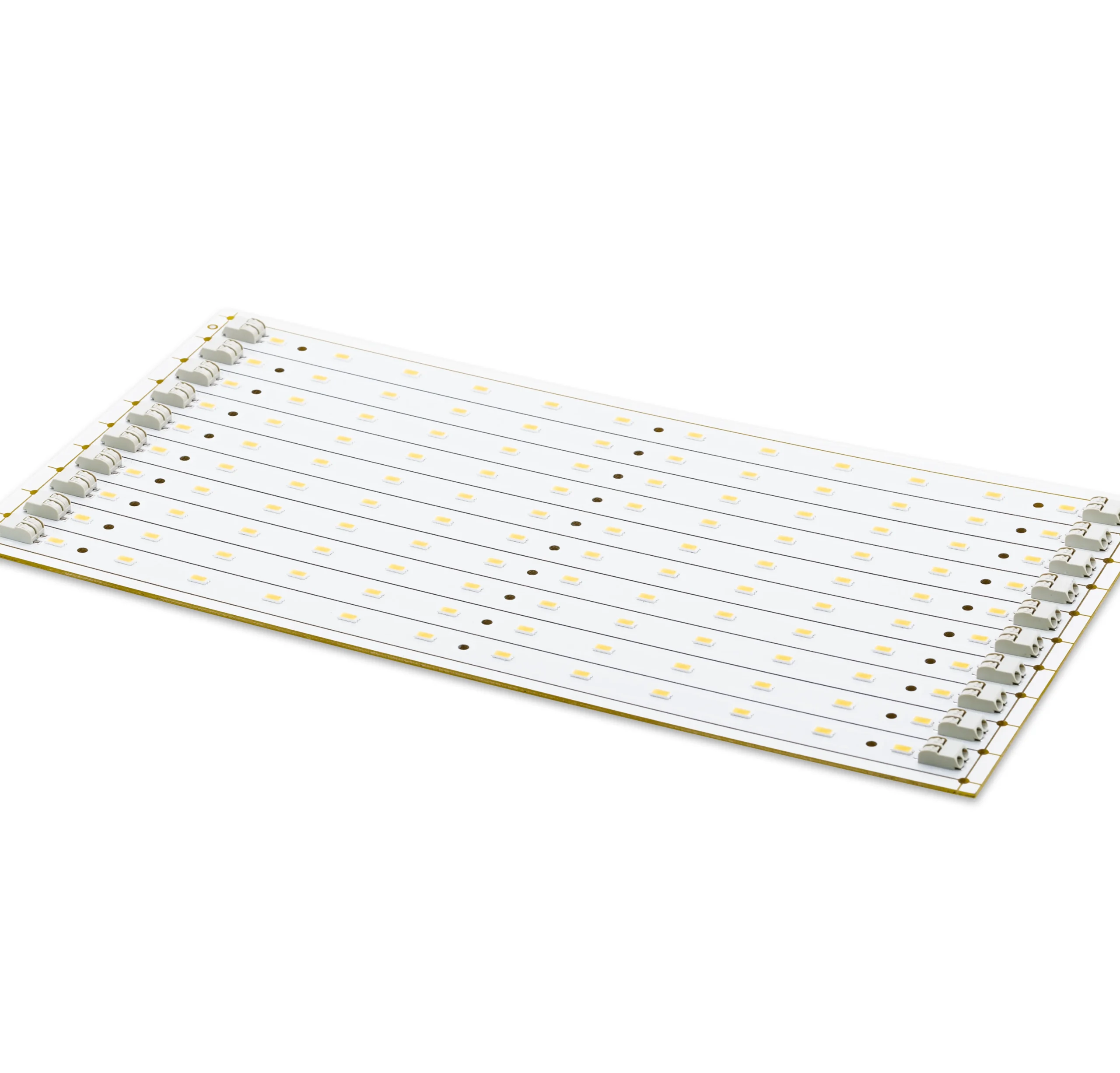

White Solder Mask LED FR4 PCB
Single sided FR4 board for LED strips, LED panels, signage lighting, and low-power lighting modules where reflection and appearance matter.
Single Sided FR4 Copper Clad Board
FR4 epoxy copper clad board for PCB base material, lab development, simple circuit boards, and sample verification.
HASL Single Layer FR4 PCB
Cost-effective single sided PCB for standard soldering processes, power boards, home appliance boards, and batch production.
ENIG Single Sided FR4 PCB
ENIG finish for cleaner pad surface, improved storage stability, flat soldering surface, and higher-grade appearance.
Single Sided FR4 PCB Assembly
PCB fabrication plus component sourcing, SMT, DIP, functional testing, and packing for finished single-layer control boards.
Compare Single Sided FR4 PCB Parameters
| Image | Product / Part No. | Material | Thickness | Copper | Trace / Space | Min. Hole | Surface Finish | Solder Mask | Delivery Form | Lead Time | MOQ | Typical Application | Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Standard Single Sided FR4 PCB YC-SF4-001 Custom Gerber Production | FR4 | 0.4-3.2mm | 1-3oz | 0.15 / 0.15mm | 0.30mm | HASL / OSP / ENIG | Green / Blue / Black / Red | Individual / Panel | 3-10 working days | 1 pcs | Control boards, instruments, consumer electronics | |
| White Solder Mask LED FR4 PCB YC-SF4-LED High Reflective Option | FR4 | 0.6-1.6mm | 1-2oz | 0.15 / 0.15mm | 0.30mm | HASL / OSP / ENIG | White / High Reflective Ink | Panel / V-Cut | 3-10 working days | 1 pcs typical | LED strips, LED panels, signage lighting | |
| Single Sided FR4 Copper Clad Board YC-SF4-CCL FR4 Epoxy Copper Board | FR4 Epoxy | Custom | Single Side Copper | 0.15 / 0.15mm | Custom | HASL / OSP / ENIG | Green | Sheet / Custom Cut | 3-10 working days | Project-based | Prototype base, sample board, simple circuit base | |
| HASL Single Layer FR4 PCB YC-SF4-HASL Cost-Effective Surface Finish | FR4 | 0.8-2.0mm | 1-3oz | 0.15 / 0.15mm | 0.30mm | HASL / Lead-Free HASL | Custom Color | Individual / Panel / V-Cut | 3-10 working days | 1 pcs typical | Power boards, appliance boards, controllers | |
| ENIG Single Sided FR4 PCB YC-SF4-ENIG Gold Surface Finish | FR4 | 0.6-2.4mm | 1-2oz | 0.15 / 0.15mm | 0.30mm | ENIG | Green / Black / Red | Individual / Panel | 5-10 working days | 1pcs typical | Fine pad boards, stable storage, clean finish boards | |
| Single Sided FR4 PCB Assembly YC-SF4-PCBA PCB + BOM + Assembly + Test | FR4 PCB | Custom | Custom | Per Gerber | Per Gerber | HASL / OSP / ENIG | Custom | Panel / Finished Board | By BOM + quantity | Project-based | Relay boards, sensor boards, finished control boards |
Lead time and MOQ depend on Gerber complexity, panel utilization, surface finish, quantity, and delivery method.
Single-Layer FR4 PCB. Custom Production from Your Gerber File.
Single-sided FR4 production requires controlled laminate selection, stable etching tolerance, solder mask uniformity, accurate drilling, final routing, and electrical net verification. YC PCB supports prototype, small batch, and repeated production orders for B2B electronics customers.
For bare PCB acceptance, visual inspection can be aligned with IPC-A-600 requirements. For assembled boards, IPC-A-610 Class 2 workmanship requirements can be used according to the project requirement.
General Capability Range
Quality Control and Compliance Support
Procurement teams need clear quality references before supplier approval. YC PCB can support standard manufacturing documentation and inspection records according to project requirements.
ISO 9001:2015
Quality management workflow for stable batch production.
UL / RoHS
Compliance documentation can be provided according to order needs.
IPC-A-600
Bare PCB appearance and acceptability reference.
IPC-A-610 Class 2
Available for PCBA workmanship requirements.
AOI + Electrical Test
Testing support before packing and delivery.
Typical Use Cases for Single Sided FR4 PCB
Single-sided FR4 is selected when the circuit is not too dense, cost control matters, and the product requires stable insulation, simple assembly, and repeatable production.
LED Lighting Boards
Typical for LED strips, LED panels, signage modules, and low-power lighting products. White solder mask and 1-2oz copper are common requirements.
Power Adapter PCBs
Used in basic power circuits, charger boards, and adapter boards. Copper width, thermal relief, and creepage clearance should be checked during DFM review.
Industrial IO Modules
Suitable for simple sensor boards, relay output boards, input/output modules, and control terminal boards where layout density is moderate.
Home Appliance Control Boards
Applied in small appliance controllers, switch boards, remote control boards, and simple electronic interface boards.
Controlled Production from File Review to Packing
Single-layer FR4 production demands strict process control: FR4 laminate selection, etching tolerance control, solder mask registration, drilling accuracy, surface finish stability, AOI inspection, electrical net testing, and final visual inspection.
Gerber / DFM Review
Check line width, spacing, drill size, copper balance, panelization, V-cut, and routing requirements.
Material & Laminate Control
Confirm FR4 material, thickness, copper weight, solder mask, and order-specific production notes.
Circuit & Surface Process
Etching, drilling, solder mask, silkscreen, HASL, OSP, ENIG, routing, and panel scoring.
AOI + Electrical Test
Inspect circuit quality, check open/short risk, verify net connectivity, and review board appearance.
RFQ Checklist
For accurate quotation, send these files and parameters when possible.
Cost-Effective Single Layer Manufacturing
Single sided FR4 PCB is usually selected when the design does not require high routing density and the project needs lower board cost, faster fabrication, and simpler assembly. Final price depends on panel utilization, material thickness, copper weight, surface finish, solder mask, quantity, and delivery method.
For cost-sensitive batch production, HASL and lead-free HASL are common choices. For SMT products that require a flatter pad surface, OSP or ENIG can be selected after engineering review.
Prototype Orders
For design validation and sample testing before batch production.
Batch Production
For repeated orders after Gerber files and production requirements are confirmed.
Express Production
Available after file review, material confirmation, and production schedule check.
Quote Method
Gerber-based pricing for accurate material, process, and panel calculation.
Request a Single Sided FR4 PCB Quote
Send Gerber files, board size, quantity, copper weight, solder mask color, surface finish, panelization requirement, and PCBA requirement if needed.
Email: sales@ycelectronic.com|Website: ycpcbs.com
RFQ Form
Request PCB Quote
This form generates an email inquiry. Attach Gerber files after the email window opens.
