Leading Flexible PCB Manufacturer

We support a range of flexible PCB structures from simple single-sided flex builds to more complex multilayer flex and rigid-flex constructions. The right layer count depends on routing density, bend requirements, component placement, and cost target.

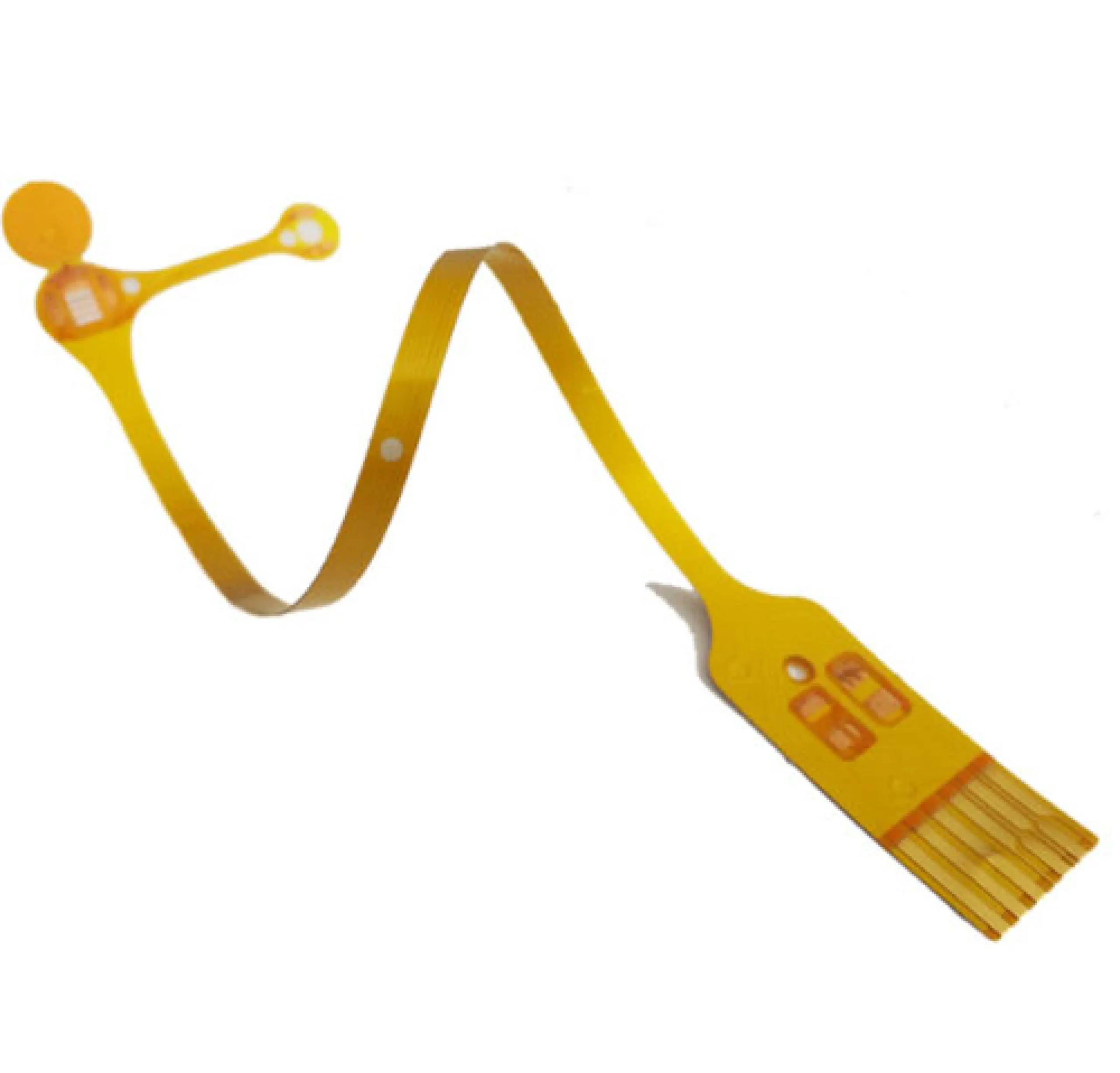

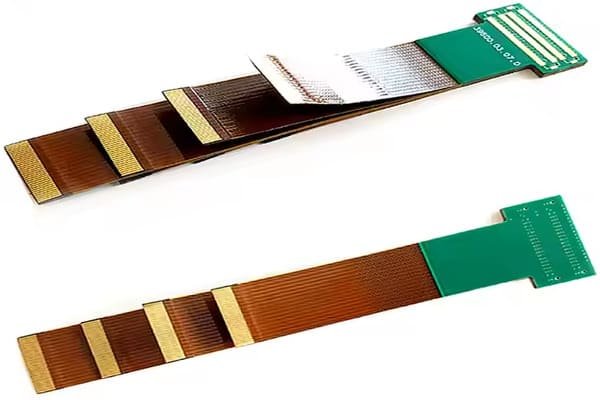

• • 1–2 layer flex: suitable for simpler interconnect, sensor, display, and cable-replacement applications
• • 4+ layer flex: used when routing density, shielding, or signal segregation becomes more demanding

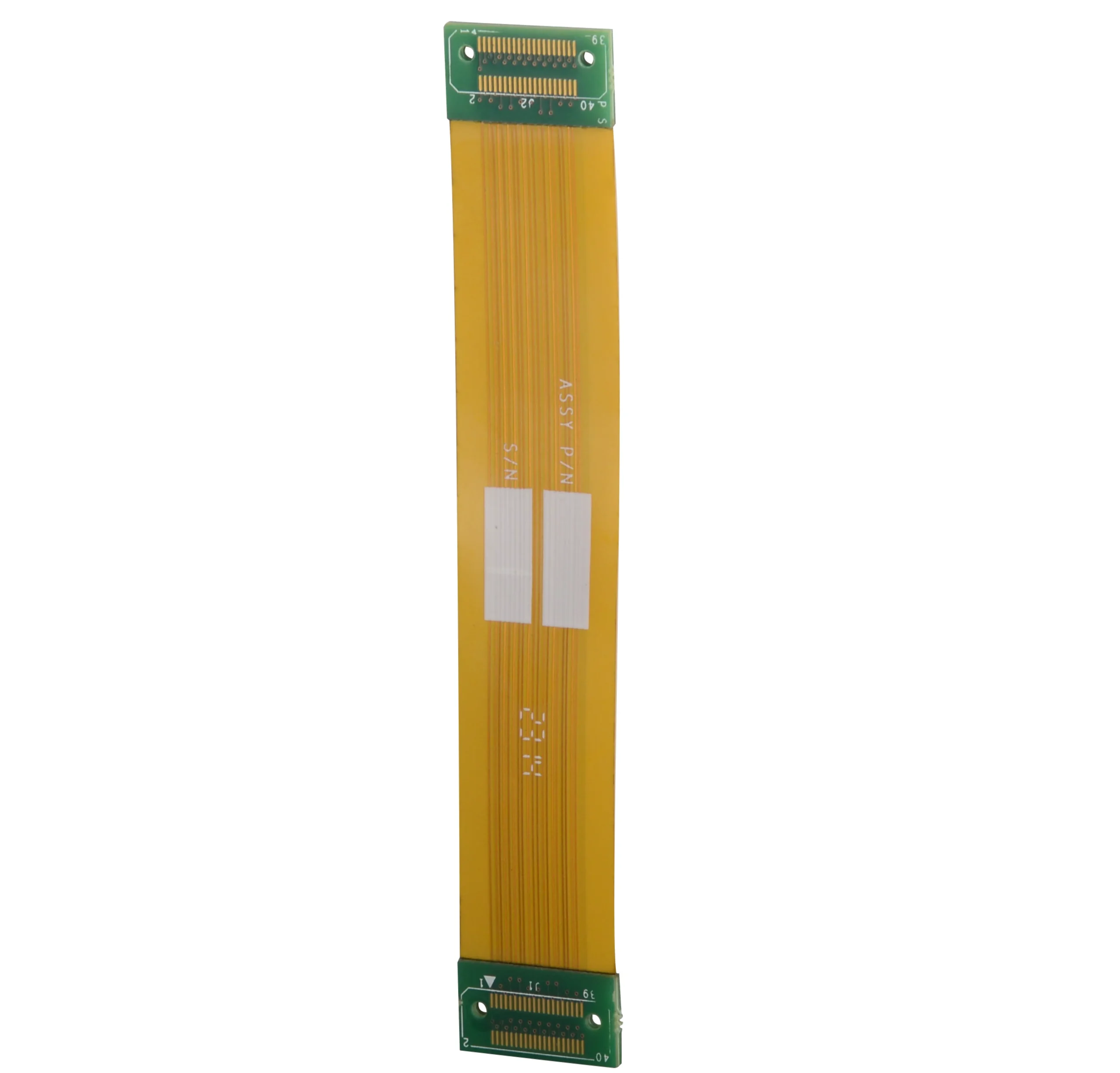

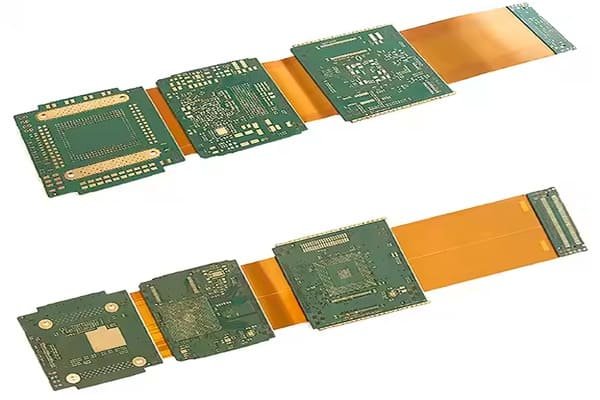

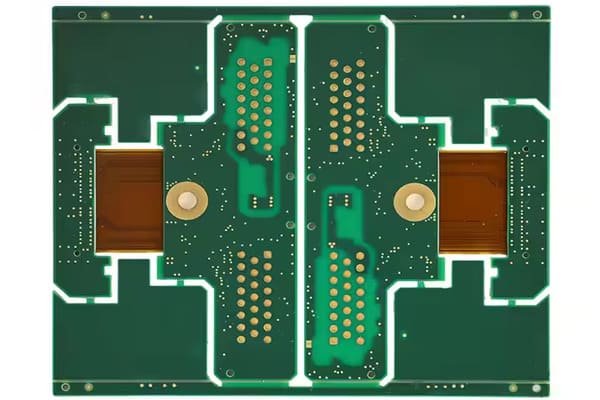

• • Rigid-flex: useful when rigid component areas and flexible folding zones are required in one structure

The best approach is to submit your files for DFM review so stackup, bend area, and manufacturability can be confirmed before quoting.

Minimum bend radius is not a single fixed number. It depends on total thickness, copper structure, trace layout, number of layers, presence of vias, and whether the flex section bends once during assembly or repeatedly during product use.

In general, thinner flex constructions allow tighter bends, while thicker multilayer structures and component-loaded areas need larger bend radii. Repeated dynamic bending also requires a more conservative design than one-time installation bending.

During engineering review, we recommend the bend zone, copper layout approach, and stiffener strategy based on your application.

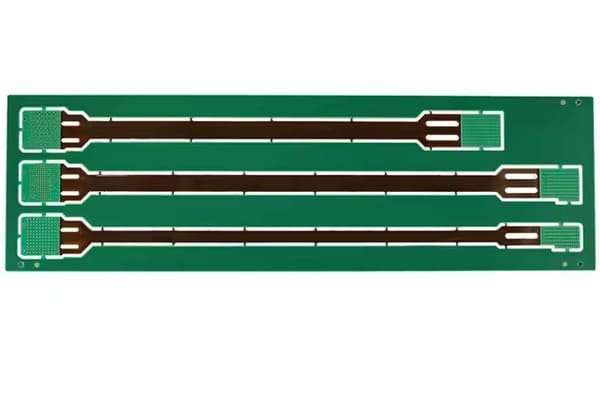

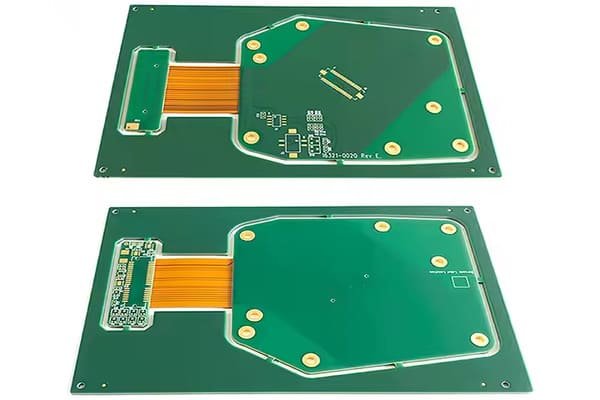

Yes. We support rigid-flex structures for projects that need both stable component areas and flexible routing in limited space.

Rigid-flex is especially useful in compact electronics, automotive modules, camera structures, industrial instruments, and products with tight mechanical envelopes.

The achievable line width and spacing depend on the material system, copper thickness, layer count, and process route. Standard designs are easier to manufacture with better yield, while finer geometries require tighter process control.

For practical sourcing, the most important step is to let engineering review your actual routing density instead of selecting the tightest possible value by default.

If you already have target trace/space values, send them with your files and we will confirm manufacturability during DFM.

Sample lead time depends on layer count, material, flex structure, special requirements, and whether assembly is included.

• • simpler flex builds can move faster after file review
• • multilayer flex and rigid-flex generally require more engineering and process time
• • PCBA lead time also depends on component sourcing and test requirements

The fastest way to get an accurate schedule is to submit Gerber or ODB++ together with quantity, BOM, and any bend or assembly notes.

Yes. We support prototype builds, pilot runs, and ongoing production supply. This is useful for customers moving from design validation into controlled small-batch production before scaling volume.

For repeat orders, we also recommend locking critical parameters such as stackup, copper structure, bend area rules, testing scope, and packing requirements.

Low-volume orders are often the best stage to confirm reliability before full production release.

Flex PCB typically has a higher unit cost because the materials, process control, and reliability requirements are usually more demanding than standard rigid FR4 boards.

• • polyimide and specialty materials are generally more expensive than standard rigid substrates
• • flex handling and production yield require tighter control
• • rigid-flex and dynamic-bend designs add engineering complexity
• • reliability validation is often more important in flex applications

Even when unit price is higher, total system cost can improve if flex or rigid-flex reduces connectors, harnesses, assembly steps, or field failures.

Yes. Pricing can be optimized based on volume, order frequency, approved materials, lead time flexibility, and whether the program includes PCB only or PCB + PCBA.

For recurring projects, it is helpful to share your expected order pattern, annual forecast, and any preferred sourcing model.

We can align quotation strategy more effectively when volume assumptions and change control rules are defined early.

Reliability evaluation depends on the application. Common checks include material suitability, bend-zone design, copper routing in flex areas, electrical performance, assembly risk, and environmental or mechanical requirements where applicable.

For projects with repeated bending, automotive exposure, or stricter quality requirements, additional validation steps should be aligned during review.

The most effective reliability plan is always application-driven rather than based on a generic test list.

Yes, provided that the project requirements are clearly defined at the engineering stage. Automotive and other high-reliability applications usually require closer attention to materials, stackup, bend structure, test scope, traceability, and documentation.

If your program includes OEM-specific quality expectations, please share them together with design files and environmental requirements.

Project suitability should be confirmed against your actual reliability target rather than assumed from board type alone.

Yes. DFM review is an important part of the quotation and engineering process.

Early DFM review usually reduces later rework, schedule slips, and avoidable cost.

For PCB-only projects, Gerber or ODB++ files together with quantity, target lead time, material preference, thickness, copper specification, and any special requirements are a strong starting point.

For PCB + PCBA projects, please also include BOM, CPL or pick-and-place data, assembly notes, and any testing requirements.

The more complete the submission, the more accurate the review, schedule, and quotation will be.

Yes. We support PCB fabrication, PCB assembly, and sourcing workflows depending on the project scope.

• • PCB only
• • PCB + PCBA
• • turnkey / partial turnkey / consigned material models

For PCBA builds, sourcing and lead time are influenced by BOM readiness, approved alternates, package type, and test requirements.

If assembly is required, send BOM and CPL together with the board files from the beginning.

We first review the issue based on the symptoms, application conditions, batch information, and any photos or test data you provide.

The goal is to determine whether the root cause is related to design, process, assembly, handling, or usage conditions. After review, we confirm the next action, which may include replacement, remake, corrective action, or engineering guidance depending on the case.

Clear documentation and traceability help shorten the resolution cycle, especially for repeat programs.

Customers typically choose us because they want a supply partner that can combine engineering review, fabrication, assembly coordination, inspection, and export delivery in one workflow.
