Automotive Lighting PCB Manufacturing FR4, Aluminum PCB, Copper Substrate, and LED PCBA.
One page for procurement screening: process capability, cost range, quality proof, delivery commitment, and direct engineering contact before sending RFQ.
For headlight, tail light, DRL, fog light, and interior lighting boards.
BOM sourcing, LED mounting, polarity check, functional test, and packing.
Experience and delivery performance visible before RFQ submission.
Certificate scans and test data links are prepared for buyer review.
Automotive Lighting PCB Sample
Show real LED lighting board, pad finish, thermal path, and surface quality.
LED Pad & Solder Mask

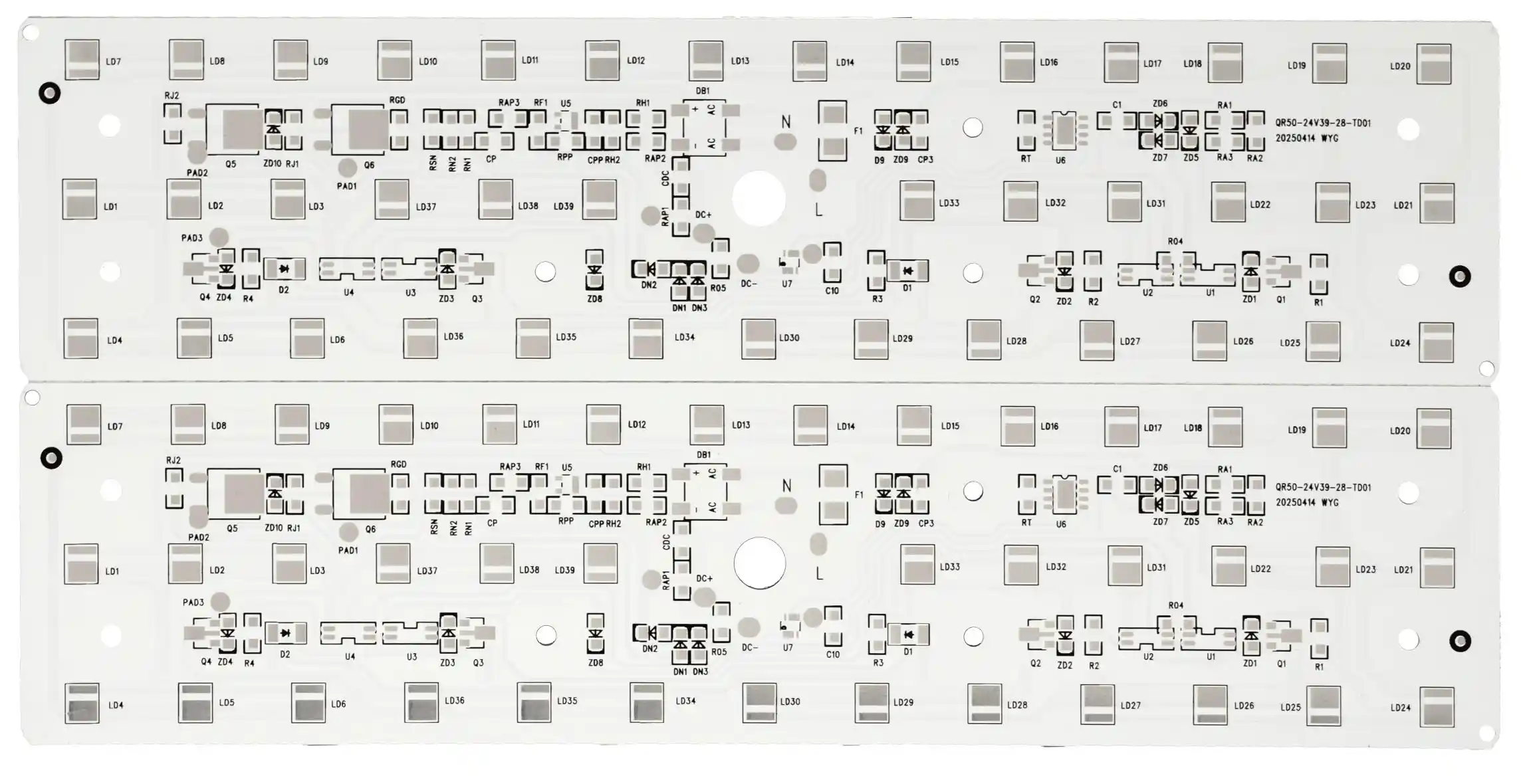

LED pad opening, polarity marking, and solder mask quality.
Power-On / Aging Test
Functional test, brightness check, or aging rack photo.
Cost Reference Before You Send RFQ
| Example | Reference Quantity | Cost Logic |
|---|---|---|
| Small FR4 lighting control PCB | 500-1000 pcs | Lowest cost route; confirm layer / finish / size |
| Aluminum LED lighting board | 500-2000 pcs | Thermal route premium; confirm W/m·K + board thickness |
| Automotive LED PCBA | Project-based | Highest variation; depends on LED, BOM, fixture, test time |
Factors affecting price
PCB pricing is mainly affected by material type, layer count, board size, copper thickness, surface finish, technical requirements, order quantity, and delivery lead time..
On-time Delivery
| Order Type | Typical MOQ | Lead Time Logic | Packing Method | Shipping Suggestion |
|---|---|---|---|---|
| Prototype / Trial Run | 50-200 pcs | DFM approval + sample production | ESD bag + vacuum + reinforced carton | DHL / FedEx / UPS priority |
| Small Batch PCB | 300-500 pcs | Gerber + material + finish confirmation | Vacuum packing + label control | Express or air freight |
| Automotive Lighting PCBA | 500 pcs typical | Gerber + BOM + test fixture confirmation | Tray + ESD bag + carton | Air freight or sea freight by schedule |
| Long-term Production | 1000 pcs | Rolling forecast + material reservation | Customer-specific packing SOP | Sea freight / scheduled consolidation |
Talk to an Engineer Before Sending Full Files
For automotive lighting PCB, buyers often need a person to confirm material route, LED assembly scope, test method, and delivery risk before RFQ.
Engineering / Sales Contact
Choose Your Automotive Lighting PCB Type
Product Photo LED Headlight PCB
High-brightness module PCB sample.
For high-power headlight modules requiring thermal path and LED pad control.
Product Photo Tail / Brake Light PCB
Tail light control or LED board sample.
For tail light, brake light, turn signal, and multi-zone rear lamp boards.
Product Photo DRL / Turn Signal PCB

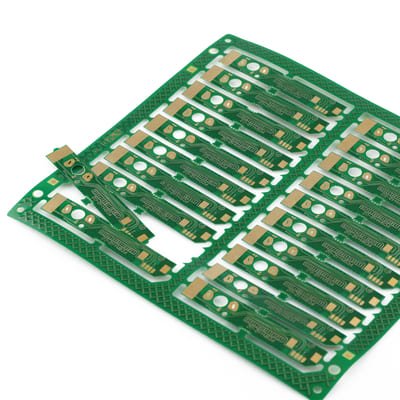

Long strip or shaped LED board sample.
For shaped DRL modules and signal lighting with V-Cut or CNC forming.
Product Photo Ambient / Interior Light PCBA
Assembled interior light PCBA sample.
For interior lighting, door light, dashboard light, and low-power LED modules.
Automotive Lighting PCB Product Table
| Image | Lighting Product | PCB Route | Material | Key Check | Assembly | Test Scope | Lead Time Logic | Quote |
|---|---|---|---|---|---|---|---|---|
 | LED Headlight PCB YC-AUTO-HL | Thermal PCB / PCBA | Aluminum / copper substrate | Thermal path, LED pad, mounting hole | Optional LED SMT | AOI / e-test / aging | After DFM + material approval | |
 | Tail / Brake Light PCB YC-AUTO-TL | FR4 / MCPCB / PCBA | FR4 / aluminum | Connector, vibration, LED layout | Optional PCBA | FCT / polarity / visual | By BOM and test scope | |
 | DRL / Turn Signal PCB YC-AUTO-DRL | Strip / shaped LED PCB | FR4 / aluminum | Outline, V-Cut, LED spacing | Optional LED mounting | AOI / power-on | After panelization review | |
 | Interior / Ambient Light PCBA YC-AUTO-INT | FR4 PCBA | FR4 | BOM, LED binning, connector | SMT / DIP / FCT | Power-on / FCT | By BOM availability | |
 | Fog Light / Auxiliary Light PCB YC-AUTO-FOG | Thermal LED PCB | Aluminum / copper by design | Thermal, coating, mounting | Optional LED PCBA | Aging / brightness / visual | After thermal route review |
Final manufacturability depends on LED power, thermal structure, board outline, connector location, waterproof design, assembly scope, and test requirement.
