Contrôle Industriel Double Layer FR4 PCB
YC PCB supplies double layer FR4 PCBs for PLC modules, driver boards, sensor interfaces, relay control boards and other industrial electronics. Submit Gerber and drill files, copper weight, surface finish, quantity, BOM and test requirements to receive a manufacturability assessment and quotation.
Industrial FR4 PCB Details Buyers Should Check
Confirm the board outline, plated and non-plated holes, connector pads, copper areas, solder mask, silkscreen and surface finish before placing the order.

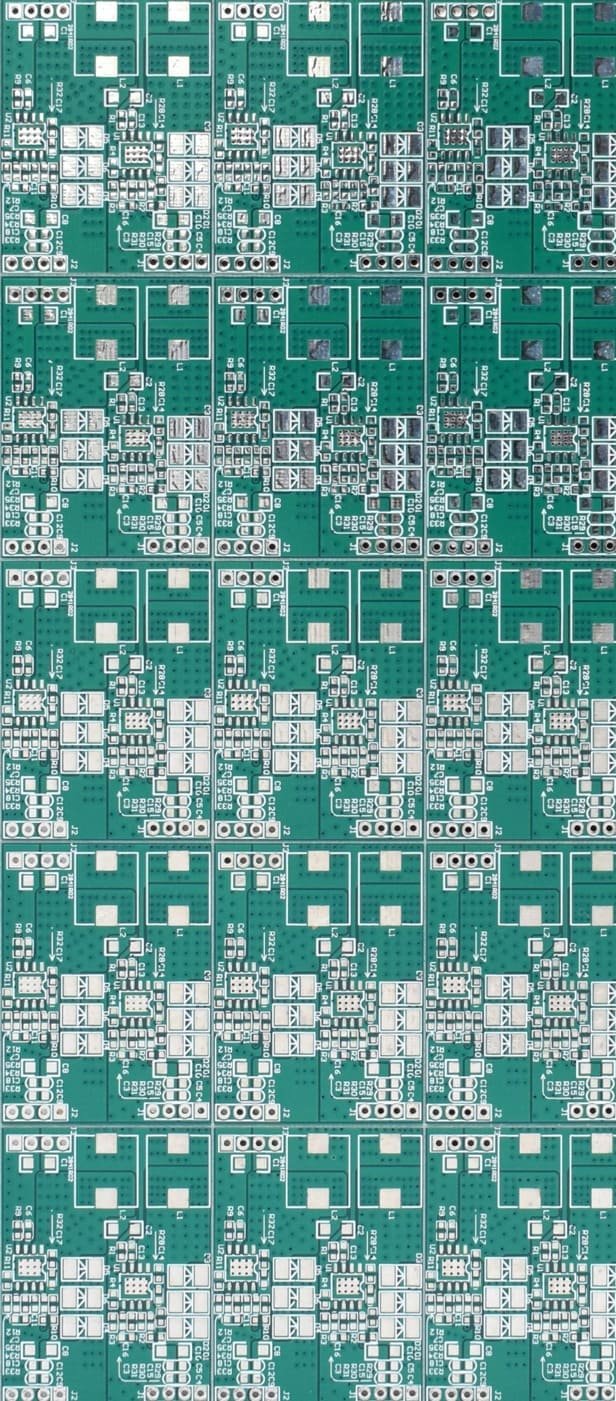

Board Outline
CNC routing, V-Cut, tooling holes and breakaway tabs are produced according to the approved mechanical drawing and panelization method.
PTH / Via Area
Provide an Excellon drill file that clearly identifies PTH, NPTH, vias, mounting holes and connector holes.
Connector Pads
Terminal blocks, relays and connectors require adequate annular rings, accurate hole dimensions and a finish suitable for the selected soldering process.
Masque de Soudure
Clear solder mask openings, legible reference designators and terminal markings support efficient assembly, inspection and field maintenance.
Is 2 Layer FR4 Suitable for Your Industrial Control Board?
Double layer FR4 is a cost-effective choice when a single-sided board cannot provide enough routing space or plated through-hole connections, while a multilayer stack-up is not required.
Choose 2 Layer FR4 When
Review Another Route When
Industrial Double Layer FR4 PCB Parameters
Final specifications, price and lead time are confirmed from the Gerber data, drill files, board thickness, copper weight, finish, quantity and assembly requirements.
| Parameter | Standard Review | Need Confirmation Before Quotation |
|---|---|---|
| Product Type | cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits | cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits |
| cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits | cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits | cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits |
| cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits | FR4 | cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits |
| cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits | cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits | cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits |
| cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits | cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits | cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits |
| Masque de Soudure | LPI solder mask, color reviewed by project | Green, blue, black, white or custom color requirement |
| Silkscreen | White / black silkscreen by project | Reference designator readability and maintenance marking |
| Surface Finish | OSP / HASL / Lead-Free HASL / ENIG | Assembly method, storage time, SMT pad flatness and solderability requirement |
| Hole Type | PTH / NPTH / vias / mounting holes | Excellon drill file and hole attribute table required |
| Edge Process | CNC routing / V-Cut / tooling | Panel drawing, breakaway tab, tooling holes and board outline |
| Tests | AOI review + electrical testing support | ICT / FCT / fixture review if PCBA is required |
| Assembly Support | SMT / THT / mixed assembly by project | BOM, pick-and-place file, assembly drawing and test requirement |
Control Board Areas to Review Before Production
Industrial control boards often combine power inputs, signal circuits, connectors, relays, drivers and test points. Each area must be coordinated with the electrical load, enclosure and assembly method.
Power Input Area
Specify operating voltage and current so copper width, terminal holes, creepage, clearance, fuse areas and heat-generating paths can be checked before production.
Control Signal Area
Signal sections should maintain suitable return paths and separation between analog, digital, switching and noise-sensitive circuits.
Connector Area
Connector pads, mounting holes, labels and board dimensions must match the enclosure, cable direction and final installation method.
Relay / Driver Area
Relay, MOSFET and driver sections may require wider copper paths, suitable copper weight, stronger solder joints and additional spacing around heat-producing components.
Test Point Area
Provide the required ICT, FCT or manual test method early so test points and fixture access can be included in the assembly plan.
Maintenance Marking
Legible silkscreen, polarity marks and terminal labels reduce wiring, assembly and maintenance errors.
Industrial Control Applications
Double layer FR4 PCBs are widely used for industrial control products that require stable PTH connections, practical routing density and repeatable prototype-to-volume production.
PLC / I-O Control Boards
Suitable for PLC controllers, I/O expansion boards and interface modules using terminal blocks, connectors and plated through-hole connections.
Driver Electronics
Suitable for motor drivers, LED drivers and power control circuits where copper width, copper weight and surface finish must match the electrical load.
Industrial Sensor Modules
Suitable for sensor interfaces, signal acquisition boards and control communication modules requiring reliable solder joints and consistent inspection.
Relay and Power Boards
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits.
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits.
| cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits | cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits | cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits |
|---|---|---|
| cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits | cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits. | cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits |
| Terminal Block and Connector Holes | Connector holes need clear PTH / NPTH attributes, pad strength and mechanical fit. | Drill file, connector model and mechanical drawing |
| Relay and High-Current Path | Driver boards and relay boards may need wider traces, copper balance and local heat review. | Copper weight, current load and power area notes |
| Ground Return Planning | Good ground return improves stability when the design has control signals, communication and switching areas. | Gerber file and design notes |
| Isolation Clearance | Control and power areas may need spacing review according to product requirements. | Voltage, application and clearance requirements |
| Copper Balance | Uneven copper distribution can increase stress or warpage risk during production. | Copper layer files and panel requirement |
| Test Point Planning | Industrial PCBA may need ICT, FCT or fixture access after assembly. | Test requirement and fixture expectation |
| SMT + THT Assembly Route | Connectors, relays and terminal blocks often require mixed assembly planning. | BOM, pick-and-place file and assembly drawing |
Surface Finish Options
Select the surface finish according to component type, storage time, soldering process, pad flatness and contact reliability requirements.
HASL / Lead-Free HASL
HASL or lead-free HASL is a practical option for many industrial boards using standard component pitches and cost-controlled production.
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits
OSP is suitable for projects assembled soon after delivery and requiring a flat, economical copper-protection finish.
ENIG
ENIG is suitable for fine-pitch SMT pads, flat contact surfaces and projects requiring longer storage before assembly.
Gold Finger Review
Hard gold or selective gold plating is used for edge contacts or repeated connector insertion; provide the plating area, thickness and bevel drawing.
2 Layer FR4 vs Other PCB Routes
Choose the PCB route according to routing density, thermal load, signal requirements, mechanical structure and total production cost.
| PCB Route | Better For | Buyer Decision |
|---|---|---|
| PCB à 2 couches FR4 | Cost-controlled industrial control, driver boards, sensor boards and relay interface boards | cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits |
| PCB FR4 à 4 couches | cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits | cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits |
| PCB en aluminium | LED lighting and power electronics with heat dissipation needs | cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits |
| Copper Substrate PCB | cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits | Choose when heat needs to move quickly from LED or power components. |
| cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits | cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits | cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits |
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits.
File Review
Gerber files, drill data, board outline, thickness, copper weight, finish and quantity are checked before the production data is released.
Préparation des matériaux
FR4 laminate and copper-clad material are prepared according to the approved board thickness, copper weight and material grade.
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits
Vias, PTH connector holes, NPTH mounting holes and mechanical holes are drilled according to the approved drill data.
Copper Plating
Copper plating forms the electrical connection between the top and bottom layers and builds the required hole-wall copper.
Imaging and Etching
Top and bottom copper patterns, pads and power areas are imaged and etched according to the Gerber files.
Solder Mask and Silkscreen
Solder mask and silkscreen are applied with the required pad openings, markings and assembly readability.
Surface Finish
OSP, HASL, lead-free HASL or ENIG is applied according to the approved quotation and assembly process.
Routing / V-Cut
CNC routing, V-Cut and tooling features are completed according to the panel drawing and separation method.
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits
Electrical testing checks every net for open and short circuits before final release.
Packing and Delivery
Finished boards are inspected for appearance, dimensions, quantity, labeling and packing before shipment.
Industrial PCB Quality Control
Industrial control PCB quality control covers incoming materials, hole quality, copper patterns, surface finish, electrical continuity, assembly readiness and protective packaging.
Incoming Material Check
FR4 laminate, copper-clad material and order specifications are verified before manufacturing begins.
Drilling Check
Drill inspection verifies hole count, diameter, position and PTH/NPTH classification to reduce connector and assembly fit problems.
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits
AOI checks copper patterns for opens, shorts, missing pads, over-etching, under-etching and solder mask registration issues.
Surface Finish Check
Surface finish inspection verifies pad coverage, solderability, appearance and storage suitability.
Test électrique
Electrical testing verifies continuity and isolation on every bare board before shipment or assembly.
Final Inspection
Final inspection verifies dimensions, markings, workmanship, quantity, labels and packing requirements.
Bare PCB and Assembly Route Review
YC PCB can combine bare PCB fabrication with component sourcing, SMT, THT, mixed assembly and testing for industrial control modules.

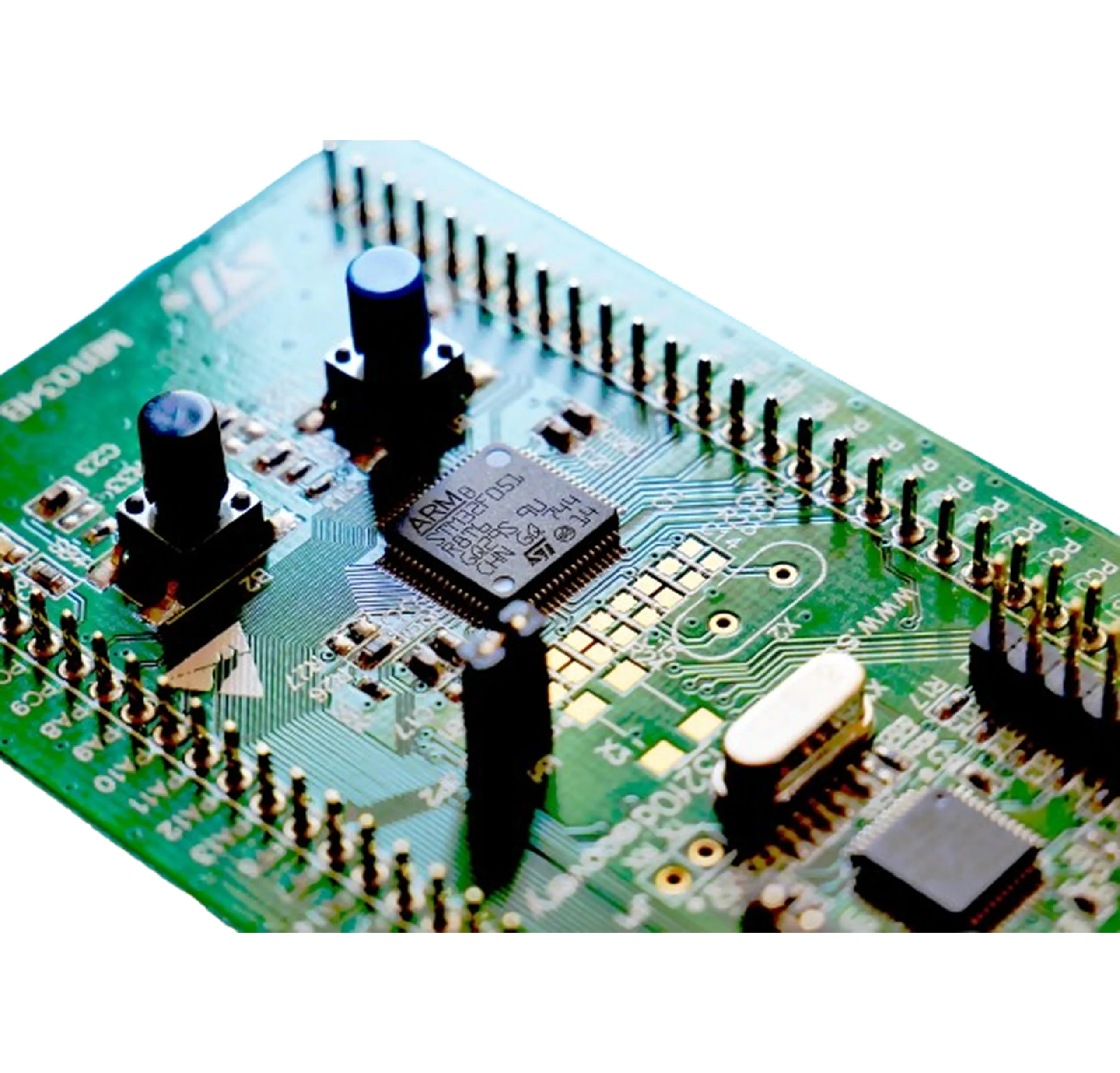

SMT Assembly
SMT assembly supports ICs, resistors, capacitors, sensors and other surface-mount components used in compact control circuits.
THT / DIP Assembly
THT or DIP assembly supports terminal blocks, relays, transformers, connectors and other through-hole components.
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits
Mixed assembly combines SMT devices with through-hole connectors, relays or power components on the same control board.
Test Review
ICT, FCT, programming and custom fixture requirements can be included when test specifications and acceptance criteria are provided.
Cost and Reliability Choices
Select materials, copper weight, finish and assembly route by balancing purchase cost, solderability, current capacity, production volume and field reliability.
| Project Situation | Recommended Review | Reason |
|---|---|---|
| Cost-sensitive prototype | Standard FR4, HASL or OSP, common copper weight and simple panelization | cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits |
| cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits | cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits | cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits |
| Driver or power path board | Trace width, copper weight, hole design and local heat review | Power areas may need stronger copper and routing checks |
| Mixed SMT + THT assembly | BOM, component height, connector position and soldering route | Industrial PCBA often combines SMD parts with terminal blocks or relays |
| Longer storage before assembly | ENIG or finish selection based on storage and solderability needs | Surface finish choice affects pad flatness and solderability after storage |
Industrial PCB Project Routes We Can Review
Common project routes include PLC control boards, driver boards, sensor interfaces and relay modules. Price and lead time depend on the submitted files, quantity, finish and assembly scope.
| Type de projet | Typical Board Route | Review Focus | Evidence to Prepare |
|---|---|---|---|
| Industrial Control Module | 2 Layer FR4 + HASL / ENIG | Routing density, holes, solderability, electrical test | Gerber, drill, board thickness, quantity |
| Driver Control Board | 2 Layer FR4 + copper review | Trace width, current path, power area, testing | Current load notes, copper weight, BOM if PCBA |
| Sensor Interface PCB | 2 Layer FR4 + SMT assembly | Pad quality, connector area, BOM, FCT review | BOM, pick-and-place, test requirement |
| Relay Interface Board | 2 Layer FR4 + THT / mixed assembly | Hole quality, component spacing, soldering route | Connector model, assembly drawing, drill table |
Why Buyers Use YC PCB for Industrial FR4 PCB Orders
YC PCB supports industrial FR4 PCB orders with file review, finish selection, bare-board testing, optional PCBA and order-specific inspection requirements.
Free DFM Review
Gerber, drill data, copper weight, finish and panelization are checked before the production route is confirmed.
Flexible Order Support
Prototype, small-batch and volume orders can be supplied without a fixed MOQ or MOV, subject to material and process requirements.
PCB + PCBA Support
Bare FR4 PCB fabrication can be combined with component sourcing, SMT, THT and functional testing.
Inspection Support
AOI and electrical testing are available for bare boards; X-Ray, ICT and FCT can be added when required by the assembly and test plan.
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits.
Industrial Control Double Layer FR4 PCB FAQ
The answers below cover common purchasing questions about materials, copper weight, finishes, testing, PCBA and order quantities.
What is an industrial control double layer FR4 PCB?
An industrial control double layer FR4 PCB uses copper circuits on both sides of an FR4 laminate, connected by plated through holes. It is commonly used for PLC modules, driver boards, sensor interfaces and relay control electronics.
When should I choose double layer FR4 instead of single layer FR4?
Choose double layer FR4 when the design needs routing on both sides, plated through holes, connector areas or greater layout flexibility than a single-layer board provides.
Should I choose 2 layer or 4 layer FR4 for my control board?
Use 2 layer FR4 for moderate routing density and cost-controlled designs. Use 4 layer FR4 when additional signal routing, dedicated ground or power planes, or improved signal integrity is required.
What copper weight is suitable for industrial control double layer FR4 PCB?
1 oz copper is common for standard signal and control circuits. Driver, relay and high-current sections may require 2 oz copper or wider traces based on current, temperature rise and available spacing.
Is ENIG better than HASL for industrial control PCB?
ENIG provides flatter pads and better storage stability for fine-pitch SMT assembly. HASL or lead-free HASL is often more economical for standard industrial components with wider pitches.
Can double layer FR4 PCB support terminal blocks and relays?
Yes. Confirm connector or relay dimensions, PTH diameter, annular ring, copper area, component spacing and soldering method in the drill and assembly files.
Can YC PCB review high-current traces before production?
Yes. Provide the operating current or power requirements so copper weight, trace width, pad size, thermal concentration and plated hole capacity can be checked.
Can YC PCB support PCB assembly for industrial control boards?
Yes. Submit Gerber files, BOM, pick-and-place data, assembly drawings and test requirements for SMT, THT or mixed assembly.
Can you provide SMT and DIP mixed assembly?
Yes. Mixed assembly is available for boards combining SMD components with terminal blocks, relays, transformers, connectors or other through-hole parts.
Can you support functional testing for industrial control PCBA?
Functional testing can be arranged when the test procedure, fixture requirements, firmware, programming files and acceptance criteria are supplied.
What files are needed for quotation?
Send Gerber RS-274X, Excellon drill files, board thickness, copper weight, solder mask color, surface finish, quantity and delivery target. Add BOM, placement and assembly files when PCBA is required.
Can I order prototypes or small batches?
Yes. Prototype, small-batch and repeat production orders are supported. Price and lead time depend on material, finish, quantity, testing and assembly requirements.
How do you check quality before shipment?
Quality control can include incoming material verification, drill inspection, AOI, electrical testing, finish inspection, dimensional checks and packing verification.
What is the difference between industrial FR4 PCB and consumer FR4 PCB?
Industrial control boards typically require stronger attention to connector durability, power and signal separation, solderability, test access, assembly consistency and the operating environment.
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits.
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits
Tell us what you need. For Gerber files, drill data, BOM, pick-and-place files, assembly drawings or other attachments, email them directly to sales@ycelectronic.com after submitting this form.
